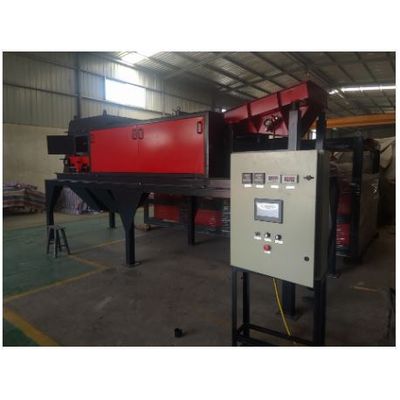

J-Magnetics - Eddy Current Separator

Eddy current separation is based on the use of a magnetic rotor with alternating polarity, spinning rapidly inside a non-metallic drum driven by a conveyor belt. As non-ferrous metals pass over the drum, the alternating magnetic field creates eddy currents in the nonferrous metal particles repelling the material away from the conveyor. While other materials drop off at the end of the conveyor, the non-ferrous metals are propelled forward over a splitter for separation.

KMD's eddy current separation equipment can be used to remove non-ferrous metals from
municipal solid waste, auto shredding residue operations, glass cullet, electronic scrap, UBC reclamation, etc.

Separate aluminum & other non-ferrous metals from process stream, municipal recycling
facility (MRF) municipal solid waste facility (MSW), scrap residue and other recyclables.

1. For even, stable and level material layer on the belt, vibratory feeder is the better choice.
2. It will be more efficient for metals with particle size over 25mm2 .
3. Fixed and firm installation base required due to assembled internal high-speed rotation parts assembled which causes strong vibration during operation.
4. Please do keep the easily-magnetized objects off the separator’s working area due to the strong alternating magnetic field.
5. Rotation speed can be adjusted via variable frequency controller.
6. If raw materials contain tramp irons, a magnetic separator is recommended.
