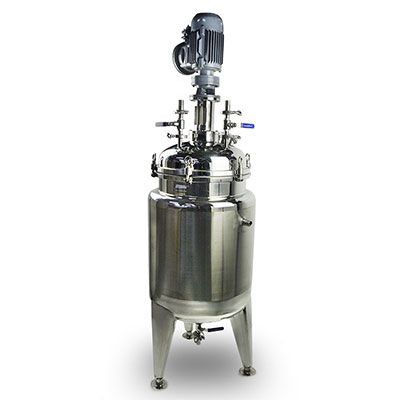

Jacketed Stainless Steel Reactor
Structural principle and characteristics of the stainless steel reactor: The reactor is composed of a pot body, a lid, a stirrer, a jacket, support, and a transmission device, a shaft sealing device, etc. The material and openings can be formulated according to the user`s process requirements. The heating forms include electric heating, oil heating, gas heating, water heating (or cooling), and open flame heating. Jacket type is divided into jacket type and outer half tube type, jacket oil heating type are equipped with a flow guiding device. Stirring types are generally paddle type, anchor type, frame type, spiral type, and scraped wall type. High-speed types include discrete impeller type, turbine type, high shear type, and propeller type for customers to choose according to the process.
The transmission forms include ordinary motors, explosion-proof motors, electromagnetic speed-regulating motors, inverters, etc. The reducers include cycloid pin gear, worm gear, and planetary stepless variable speed. Shaft seals are ordinary water-cooled packing seals, combined PTFE packing seals, and mechanical seals. There are a ball valve and a down valve.
Jacketed stainless steel reactor is suitable for:
Stainless steel batch reactors are widely used in petroleum, chemical, rubber, pesticide, dye, medicine, food, and equipment used to complete sulfur, nitration, hydrogenation, hydrocarbonation, polymerization, condensation and other processes.
After sale
- 1 year warranty service and all life maintenance.
- Technical Egineer are avalible for oversea trainning.
- Free change for some parts
- Remote control technical consult
- Free installation DVD
- Maintenance plan
- The inner tank body is made of stainless steel (SUS304, SUS316L or SUS321) according to the process requirements. The inner surface is mirror-polished. It can be cleaned online by CIP and sterilized by SIP.
- The jacket is made of stainless steel (SUS304) or carbon steel (Q235-B) according to the process requirements.
- Appropriate diameter-to-height ratio design, customized mixing device as required; mixing shaft seal adopts pressure-resistant sanitary mechanical sealing device to maintain working pressure in the tank and prevent unnecessary leakage and material loss caused by material leakage in the tank
- The supporting type adopts hanging ear type or floor leg type according to the operation requirements.
