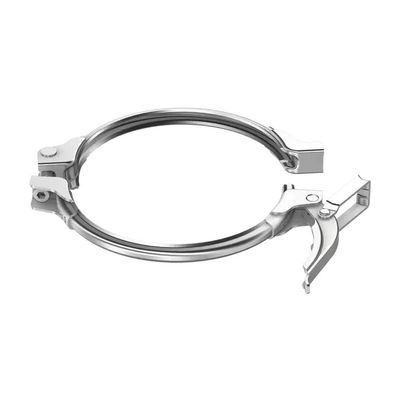

Jacob - Quick Connect Pull-Rings
The JACOB pull-ring system is very easy to assemble and gives the pipework system its high stability and leak-tightness due to its high-quality construction. Both pull-rings have been tested in conjunction with JACOB U-shaped seals. The air leakage per connection, measured at a differential pressure of 0.5 bar – e.g. with a diameter of 300 mm – is far below the admissible values of DIN EN 12237, class D.
- Pull-rings for use in conjunction with U-shaped seal for 1 and 2 mm pipework system
- Up to DN 300 mm, shock explosion proof to 3 bar
Diameters available
80, 100, 120, 140, 150, 175, 200, 224, 250, 280, 300, 315, 350, 400, 450 mm
Materials available
Galvanised & stainless steel
Diameter 450mm is available upon request. Pressures testing up to 3 bar overpressure as standard - technical data available upon request.
Up to a diameter of DN 300 mm, our pull-ring system with a U-shaped seal, if configured accordingly, is condensation leak-proof and so is ideal for applications such as extracting oil mist. As a rule, our pull-ring connections with a U-shaped seal can be used for conveying bulk goods and for ventilation systems at over-pressures of up to 50,000 Pa (500 mbar, 5,000 mm WG). Vacuum applications are possible on request, depending on the product selected.
