Jansen & Heuning - Model JHFCS -Big Bag Crusher
FromJansen & Heuning
The content of big bags can become hard for many reasons. In that case, it is not possible to empty the big bag in a normal way, because the lumps are too big. By crushing the content, the large lumps are reduced to a workable size.
Most popular related searches
- Subcategory Big bag handling (FIBC)
- Name Big bag crusher
- Article number JHFCS
- Height2,2 m
- Width3,1 m
- Length2,4 m
- Max. press force200 KN
- Pressure200 bar
- Lifting power2000 kg
- Rotation90°
- Max. size big bag (lxwxh)1200 x 1200 x 1600 mm
- Min. size big bag (lxwxh)800 x 800 x 800 mm
- PlugCEE 400v 3P+N+PE 32A
- Purpose recreating flowability by crushing lumps of product in big bags
- Execution two hydraulic controlled pressing arms, a lifting table and a turning table
- Process in eight steps the crusher presses a bigbag from different sides and heights. This causes the lumps to break into smaller parts and makes the product flowable again.

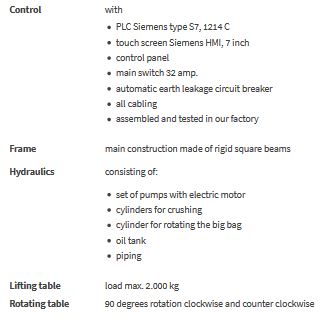

- Control with a touch screen. Adjusting the program is easy. Different parameters for: number of steps, pressing length, turning of the FIBC, etc.
- Installation completely assembled and tested in the factory
- At site the customer needs to take care of:
- a concrete floor
- an electric power supply of 32 amp into the control panel
