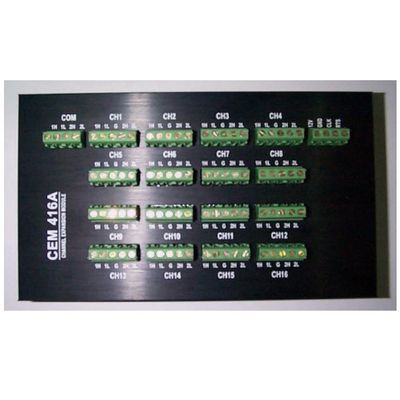

Jauntering - Model CEM 416A -Channel Sensor Expansion Module for Dataloggers
CEM 416A is mainly used to increase the number of input sensors for datalogger series including HL20, DT12, CR10X, CR1000, CR800and others. The CEM416A is located between datalogger and sensors. By using the relay switch features, it sequentially scans and processes each incoming signal of sensors and transmits the signal to datalogger, which is same as other relay-switched multiplexers of worldwide makers`.
The CEM416A is housed in a 23 cm * 13 cm * 5.6 cm anodized aluminum case. The aluminum case is intended to reduce temperature gradients across the CEM416A`s terminal strips. This is typically important when thermocouples are being wired and multiplexed to CEM416A. The CEM416A can be easily to mount on any plate without removing any screw of the case: and the bottom of case supports room for user to mount the CEM416A on any plate.
