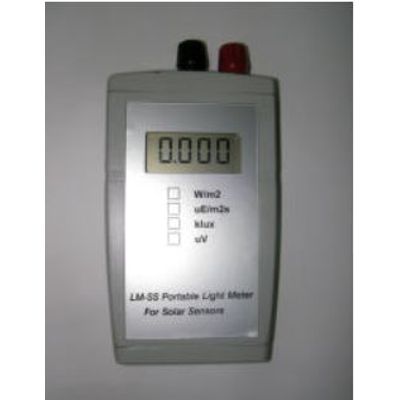

Jauntering - Model LM-SS -Portable Light Meter for Solar Sensors
The LM-SS is a low-cost, high-performance sensor readout unit with integrated datalogger. The sensor sensitivity can be programmed into the LM-SS such that the readout will show calibrated engineering units, rather than millivolts or microvolts. Use of the datalogger functions and programming the sensor sensitivity, requires a USB interface which is used to connect the LM-SS to a PC. The LM-SS accommodates many sensors including E20, E90, LP02. SR11. PSP. LI-200S, CM3, E90, LI-190S, LI-210S, PIR, TUVR, CM4, CMP series, SP-Lite, NR-Lite, PAR Lite, CUV4 and other sensors with low signal outputs.
Most popular related searches
- A/D conversion: 16 bits
- Full scale input: +-6.25mV ... +-200mV
- Basic accuracy: 0.1%
- Temperature sensitivity: < 0.5% over the full temperature range
- Offset drift: < 3 uV over the full temperature range
- Operation temperature range: -10.. +40 °C
- Storage temperature range: -20.. +60 °C
- Relative humidity: < 95% RH non-condensing
- Input circuit: > 2 MOhm
- Input low-pass filter: 5 Hz
- Input connectors: 2 x 4mm banana plug
- Display: LCD 4 digits with sign
- Decimal dot position (programmable): 8888 or 888.8 or 88.88 or 8.888
- Display update: At least 1 per second
- Computer interface: USB 1.1 /2.0
- Supply current: <2mA
- Batteries: 2 AA alkaline
- Battery life (alkaline): > 600 hours (25 days) continuous use
- Data logger memory: 3518 samples
- Data logger storage interval: 2 .. 65535 seconds
- Logged information: Min, max and average over log interval
- Software compatibility: Windows 2000, Windows XP, Windows Vista
- Accessory: Carrying case included
