Red Rhino - Model 3000 Series -Jaw Action Crusher

The 3000 series has a jaw aperture of 500mm x 250mm.

Its crushes a full UK kerbstone in approximately 30 seconds.

Material: The 3000 series will crush concrete, kerbstone, marble, paving slabs, bricks, tiles, blocks, stone, porcelain, flint, gravestones, etc.

Output : Output can vary according to jaw setting, loading method, loading equipment, input material, and familiarity of the loading operator. In excess of 15 tonnes per hour has been achieved.

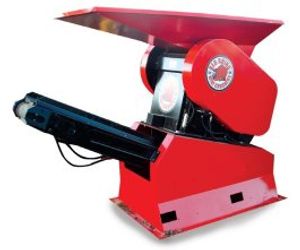

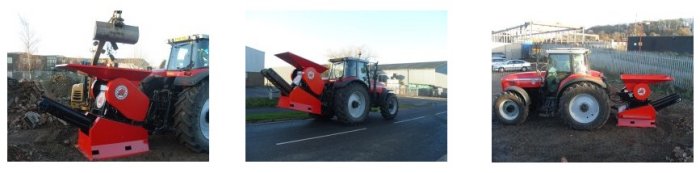

With the same output as the 5000 series, it is big enough to tackle even the most demanding jobs with ease. It can be either mounted on a 3 Point Linkage (tractor) using the host machine’s hydraulics, as a stand alone ‘skid mount’ unit run on electrics or by either a diesel or petrol power pack or a trailer mount configuration.

The 3000 series is a jaw action crusher that can crush a full UK kerbstone in approximately 30 seconds. A hydraulically adjustable jaw allows output product sizes to range from 10mm up to 100mm. Simply set the crusher jaws to the maximum output sized required and let the crusher do the rest.

Being only 1295mm wide, the 3000 series can enter sites where access and space are restricted. Dust suppression is fi tted as standard, by means of fi ne water spray nozzles utilising standard domestic hose pressure.

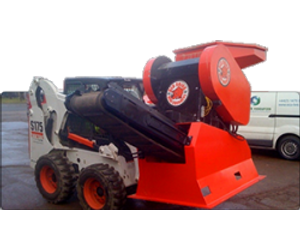

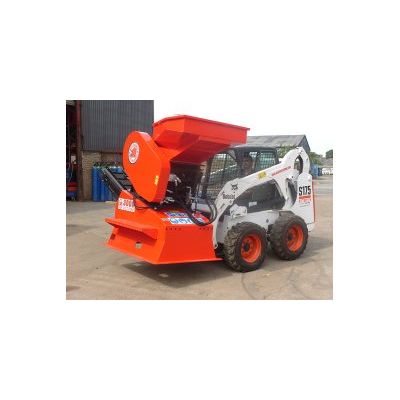

Simply hook up the crusher using either three point linkage or skid steer pick up, connect the hoses to your chosen drive source and your ready to crush. Set up time is less than 5 minutes.

This crusher is very popular with farmers, small waste companies and muck away companies looking to utilise their existing equipment to power the crusher. The 3000 series makes light work of reinforced concrete, brick, glass, porcelain and other aggregate type products.

Crushing with the 3000 series can save thousands of pounds on landfi ll and better still can be driven by your existing equipment.
