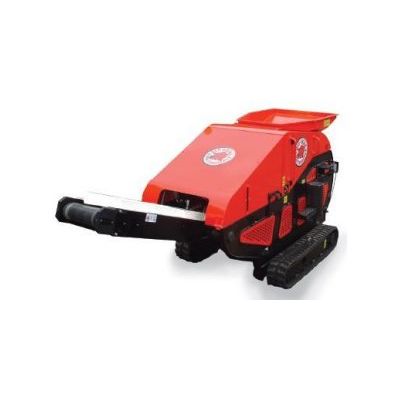

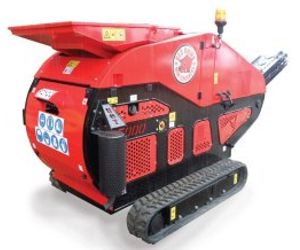

Red Rhino - Model 5000 Series -Jaw Action Crusher

The 5000 series has a jaw aperture of 500mm x 250mm.

Its crushes a full UK kerbstone in approximately 30 seconds.

• Powered by a Deutz 40hp Diesel engine
• Fuel consumption only 5 litres per hour
• Wireless Remote Control System (optional Cable)
• Output size can range from 10mm through to 100mm
• CE marked

Material: The 5000 series will crush concrete, kerbstone, marble, paving slabs, bricks, tiles, blocks, stone, porcelain, flint, gravestones, etc.

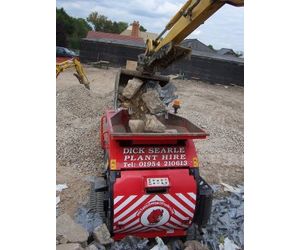

Arrive on site and be up an crushing within 5 minutes. Crushing with the wireless remote control means using a 5000 series becomes a one man operation

Optional Extras

• Magnet Conveyor
• Motorised Screener
• Non motorised Screener
• Breaker attachment

Output: Output can vary according to jaw setting, loading method, loading equipment, input material, and familiarity of the loading operator. In excess of 15 tonnes per hour has been achieved.

The 5000 series is a jaw action crusher that will crush a full UK kerbstone in approximately 30 seconds. Instant hydraulic adjustable jaws allow output product sizes to range from 10mm up to 100mm. Being only 1660mm wide, the 5000 series can enter sites where access and space are restricted. Dust suppression is fitted as standard, by means of fine water spray nozzles utilising standard domestic hose pressure.

• Jaw aperture of 500mm x 250mm
• Output size choice from 10mm to 100mm
• Deutz 40hp air-cooled diesel
• Fuel consumption is approximately 5 litres per hour
• Output can be up to 15t – 20t per hour
• Wireless remote control system for all functions
• Excavator loaded
• CE marked
