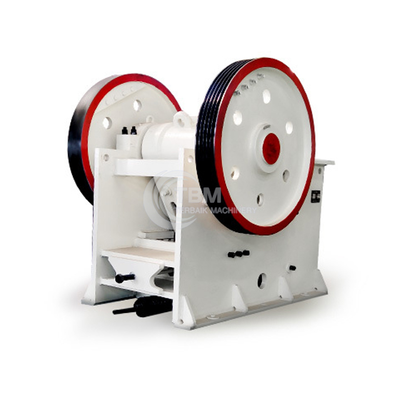

Terbaik - Model PE 250 400 600 900 Series -Jaw Crusher
Jaw Crushers for reliable crushing solutions in various industries. Jaw Crushers ensure efficient material crushing, enhancing productivity and product quality. Trust Terbaikmachinery for expertly crafted crushing solutions. Jaw crusher commonly known as jaw crusher, also known as tiger jaw. The crushing chamber is composed of two jaw plates, the moving jaw and the static jaw, which simulate the movement of the two jaws of animals to complete the material crushing operation. It is widely used in the crushing of various ores and large materials in the mining and smelting, building materials, highways, railways, water conservancy and chemical industries. The maximum compressive strength of the crushed material is 320Mpa.
- Unique Flywheel Design: Reduce vibration effectively, Machine work is stable
- Large Crushing Ratio: low suspension motion mechanism leads to greater crushing ratio.
- Easy To Maintain: Application of high wear-resisting toothed plate, long maintenance period, and cost-saving.
- Low Failure Rate: Reliable performance, optimized design, the low failure rate.
The movable jaw is hung on the mandrel and can swing left and right. When the eccentric shaft rotates, the connecting rod reciprocates up and down, which drives the two thrust plates to also reciprocate, thereby pushing the movable jaw to reciprocate left and right to realize crushing and unloading. This type of crusher adopts a crank double-link mechanism. Although the movable jaw is subjected to a great crushing reaction force, its eccentric shaft and connecting rod are not subjected to much force. Therefore, large-scale and medium-sized machines are often used in the industry. Come to crush hard materials. In addition, when this type of crusher works, the motion trajectory of each point on the movable jaw is an arc centered on the mandrel, the arc radius is equal to the distance from the point to the axis, the upper arc is small, and the lower arc is large. The crushing efficiency is low, and the crushing ratio is generally 3-6. Because of its simple movement trajectory, it is called simple swing jaw crusher.
