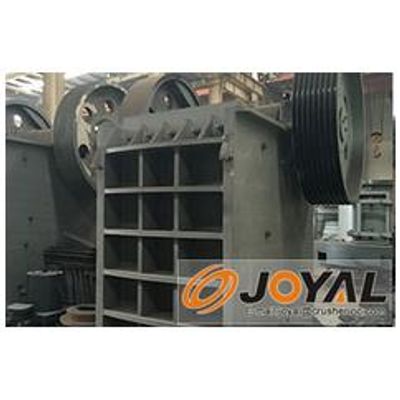

Joyal - Model PE1200×1500 -Jaw Crusher
The JOYAL PE1200×1500 Jaw Crusher is widely used in mining, building materials, chemical industry, metallurgy and so on. The PE1200×1500 Jaw Crusher is suitable for primary and secondary crushing of all kinds of minerals and rocks with compressive strength less than 320 MPa.
Most popular related searches
- Simply structured, easy to maintain;
- High crushing ratio, uniform granularity;
- Reliable performance, low investment;
- Almost zero noise and little dust.
The strip and strip pulley are driven by a motor, and the movable jaw moves up and down via eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the movable jaw runs down, then the materials are crushed into pieces. It will become bigger when the movable jaw runs up. The movable jaw board leaves the fixed jaw board under the action of pole and spring , then the end products come out from the crushing cavity.
