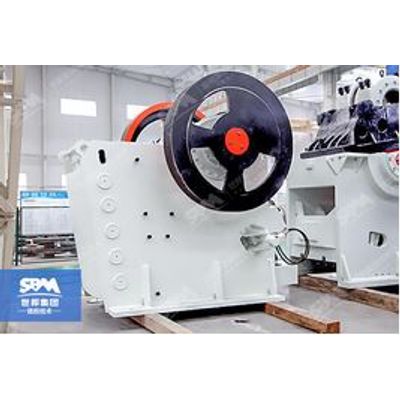

SBM - Jaw Crusher
Jaw crusher is a widely used coarse crusher, which can crush all materials below 1500mm. It can be said to be a necessary equipment for sand and gravel plants. The output of the small jaw crusher can meet the needs of most users, and it is very popular because of its high cost performance. Jaw crusher is mainly used in the industries of metallurgy, mining, chemical, cement, construction, refractory materials and ceramics, suitable to crush hard and soft ores with compressive strength less than 320 MPa. This machine can crush material s into medium size and fine size.

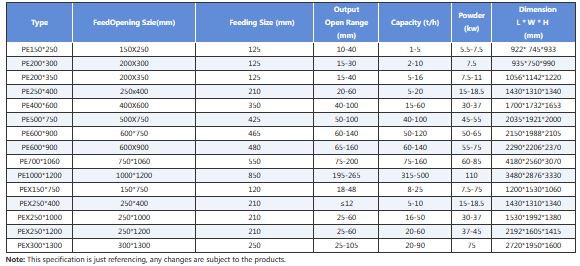

- Input Size: less than 250 mm
- Output Size: 10-100 mm
- Capacity: 1-90 t/h
Applicable materials: River pebble, granite, basalt, iron ore, limestone, quartzite, coal gangue, construction waste, etc.
Product features: ?High crushing ratio, uniform particle size ?Simple structure, reliable performance ?Easy operation and maintenance
- High crushing ratio, uniform particle size
- Simple structure, reliable performance
- Easy operation and maintenance
The movable jaw goes upward and downward through eccentric shaft when belt and belt wheel are driven by the motor. The angle between movable jaw and bracket turns big when the movable jaw goes upward, which pushes the movable jaw plate to come closely to fixed jaw plate. At the same time, materials are crushed with the movement of the movable jaw. When the movable jaw goes downward, the angle between movable jaw and bracket turns small.
Under the force of spring and connecting bars, the movable jaw plate leaves fixed jaw plate, and the crushed materials with qualfied size are discharged from the crushing cavity. With the continuous rotation of the motor, the movable jaw crushes and discharges materials, which, in turn, realizes the goal of mass production.
