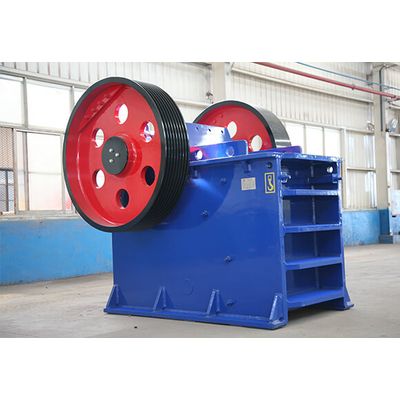

Greatwall -Â Model PE -Jaw Crusher
PE Jaw CrusherDue to the advantages of its simple structure, solidness, reliable work, easy maintenance, and fewer production and construction cost, jaw crusher is often used as a primary crusher for various stone production lines and ore crushing production lines. A jaw crusher is often used as a primary crusher for various stone-crushing lines and ore-crushing production lines. Primary crushers are solidly built to receive large lumps of rock directly from the mines and are designed for large tonnage throughputs.
- Processing Capacity: 50-1500TPH
- Max. Feeding Size:120-1500mm
- Application Fields: Mining, metallurgy, construction, highway, railroad, water conservancy, cement industry, and ore processing, etc.
- Applied Materials: River pebbles, granite, basalt, iron ore, limestone, quartzite, diabase, iron ore, gold ore, copper ore, etc.
- Customized Service:Small, medium and large models can be customized, to meet customers’ demands.
It is widely used in various industries such as mining, metallurgy, building materials, highway, railway, water conservancies, and the chemical industry. It can process various stones with compressive strength of less than 320MPa.
- Simple, stable, and strong structure.
- Large crushing ratio and even output size.
- Reliable working conditions.
- Deep crushing chamber, and larger feeding capacity.
- Low noise and less dust.
- Easy maintenance, lower operation cost, and longer service life.
- Large adjustment range of discharge opening, meeting different requirements.
When the jaw crusher is working, the swing jaw plate periodically reciprocates to the fixed jaw plate, sometimes approaching and sometimes leaving. When approaching, the material is crushed by extrusion, splitting, and impact between the two jaw plates; when leaving, the crushed material is discharged from the discharge port by gravity. The motor transmits power through the v-belt and drives the swing jaw plate to do periodic motion towards the fixed jaw plate by the eccentric shaft.
