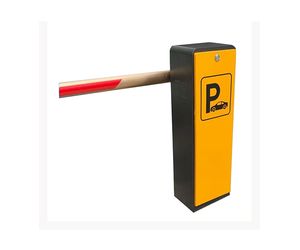

Jayda - Model JDDZ-4 -Automatic Gate Barrier
Automatic gate barrier JDDZ-4 is an efficinet vehicle access control solution for controlling entry of authorized resident vehicles at safe pre-determined time intervals, coming with compact and stylish design for restrict areas with high traffic flow. The combination of the advanced digital DC24V brushless motor and a planetary gearing system with sinusoidal movement for a soft start and soft stop action, ensures a smooth elevation or lowering of the barrier arm, and avoiding bounce in the end position. On the other hand, automatic parking barrier gate JDDZ-4 provides variable speed 0.8~ 3 seconds for different boom length. In general, each boom length Is set to a standard operational speed but can be simply adjusted directly from control board to get a faster or slower speeds depending on the requirement.
DC24V brushless motor digital automatic barrier gate, automatic parking gate provides variable speed 0.8~ 3 seconds for different boom length
Designed for both indoor and outdoor application, providing a rapid, reliable and smooth operational way with low noise and low power consumption, and flexibly integration various access control systems, automatic barrier gate JDDZ-4 is generally used in commercial and industrial applications such as controlling access to parking lots and garages in large business complexes, airports and public facilities.
Automatic Gate Barrier Featurers
1. Speed 0.8 second up to 3 seconds depending on the settings
2. Energy saving DC24V brushless motor gearbox
3. Manual operation in the event of power failure
4. Smooth and efficient operation
5. Secure operation with safety devices
6. Possibility of integration with any type of access control systems
7. Slim profile; fits on narrow islands
8. Environmentally durable cabinet
9. User-friendly and optimum accessibility
10.Easy installation and service
Automatic Gate Barrier Applications
Private and company premises
Industrial and hospital premises
Tunnels
Motorways
Public facilities
Shopping mall
Automatic Gate Barrier Parameters
Power Supply: AC220V/ AC110V±10%, 50/60hZ
Rated Power: 100W
Motor Type: DC 24V brushless digital motor
Motor Speed: 1500RPM
Open Time: 0.8~3 seconds
Boom Type & Lenght: Max 4 meters straight boom
Noise: ≤60dB
Error Action: ≤0.0%
Interfaces: IR sensor, vehicle detector, open/ close/stop
Life Cycle: 4.5 million times
Work Temperature: -35ºC~60ºC, Relative humidity:≤90%, no condensation
Dimension: 330*263*1000mm
What is an automatic gate barrier?
Automatic gate barrier, also known as automated car park barrier or electric rising arm barrier, is designed to restrict access for vehicles, keeping out unwanted vehicles and letting authorized vehicles in, providing an ideal vehicle access control solution for condominium areas and industrial and commercial areas. Automatic barrier gate consists of a boom, a control unit, and a drive motor. The boom is the barrier that prevents vehicles from passing, the control unit is the main command center which process the signal from access control device and operates accordingly, and the drive motor drives the boom rising up/falling down after receiving the order of unit control.
How does an automatic gate barrier works?
Automatic gate barrier works with intelligent access control systems which allow authorized vehicles access by valid credentials such as card, barcode tickets. In general, when vehicle approaches and the safety device such us vehichle detector, IR sendor detects the vehicle, parking management system distributes a card or barcode ticket and automated car park barrier auto openes to allow the vehicle access. When exit, the parking management system collects the card or barcode ticket and let the vehicle leave. Nowadays, ANPR cameras are more widely applicated which use CCTV-style cameras to cleverly detect number plates and allow access. In case of power failure, the boom is easy to be rised up manually with slight force.
Benefits of automatic gate barrier
Today, automatic gate barriers can be used almost anywhere, they are an useful addition to any property to add an additional layer of security.
Denying unauthorised parking: only customers who are authorized can enter the car park
Preventing overfilling: automatic car park gates will calculate how many cars are in the car park at any one time and only allow in additional cars if there is space.
Speed of entering and exiting and convenience: customers spend much less time queueing to enter or exit. It adds up to a smooth and positive experience.
Cost-saving: automatic traffic barrier runs in an unmanned way, which means lowering the cost of employing staff.
Security: all the vehicles are managed under surveillance when enter and exit, in security situation.
Integration with other systems
In practise, automatic gate barrier and integrated access control solution are always linked with other systems and software outside of security. For example, most of companies or businesses may link the access control point at the barrier to the HR system, by which they are allowed to more closely monitor time attendance and effectively manage their staffs. For logistics enterprises, they might link their barriers with their logistics or ERP system to provide customers and internal staffs with accurate departure and expected arrival times.
What advantages of automatic gate barrier?
1. use DC24V digital brushless motor which features lower noise, lower calorific value, energy-saving and environmental protection, safer use.
2. The operating state of the barrier boom is detected all-round, which can realize high-precision state adjustment and control.
3. During running, the barrie boom rebounds when encounters obstacles, which can effectively prevent smashing.
4. The speed of 0.6~6 seconds adjustable, which meet the needs of wide applications
5. The mechanic structure is simplified which reduce the maintenance costs.
6. Much easier to debug by simply adjust the parameters directly from control board
7. Longer life span of 4.5 million times
