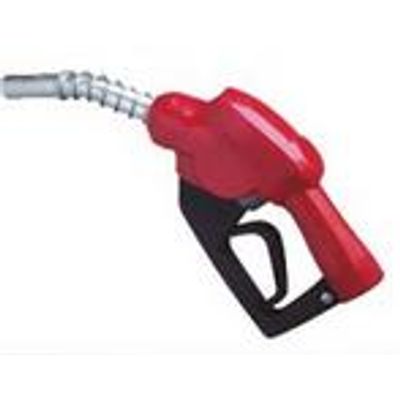

Jayo - Model 11A -Automatic Fuel Nozzle
JAYO Self-sealing fueling nozzle 11A is a kind of fuel gun suitable for filling operation of light oil such as kerosene, gasoline and diesel. With aluminum alloy as body material, this fuel gun has good electrical conductivity to eliminate static electricity in time and safely. Using the A2111-15A automatic fuel nozzle can increase the working efficiency of gas station. By the way, the oil inlet thread of the refueling nozzle can only be connected with the oil pipe joint with the same thread. If the thread standard is different, it will not be able to achieve sealing, and it is easy to damage the threads on both sides and even cause the gun body to rupture.Most popular related searches
poppet check valve
static electricity
rotary vane pump
electrical conductivity
flow control
pressure flow controller
workstation
- Body: Aluminum
- Seals: Buna-N, Won
- Main stem seals: Viton Cased Oil Seal
- Main stem: Stainless steel
- 11A self-sealing refueling nozzle is designed for refilling diesel, kerosene and various gasoline.
- Double poppet valve – easy to open the fuel gun under high pressure.
- Accurate flow control – the user can fill up the fuel tank according to the exact number of oil they need, and it is very easy to stop the oil supply accurately.
- Small aluminum frame – light weight, easy to operate, unique and novel in appearance.
- Easy to replace the oil outlet pipe MX needs to remove the screw on the oil outlet pipe and replace it with a new oil outlet pipe. The relevant accessories can be obtained from JAYO.
- Hidden normally open holding gear – users can easily set three different flow rates.
- The overall insulating holster 4 protects the refueling gun and the vehicle, and isolates the user’s hands from damage.
- Color selection – see color chart inside page.
- Optional splash guard.
- The oil outlet pipe with attitude lock can be selected. When the oil outlet pipe is tilted upward and is larger than the horizontal position, the oil gun will be automatically closed to prevent leakage and accidents.
- 100% factory inspection.
Using other objects to keep the automatic fueling nozzles in the normally open state will cause the fuel gun to fail to close and personal injury.
Package info of Fuel Gun A2111-15A
- Net Weight: 1.5kg/pc
- Gross Weight: 1.8kg/pc
- 55*34*42.5cm3 / case of 15pcs 37.5*34*43cm3 / case of 10pcs
