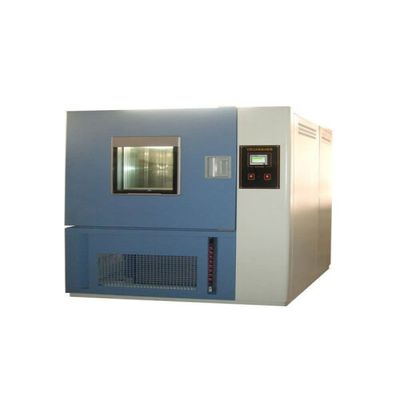

Jayon - Temperature Humidity Test Chamber
High low temperature damp heat climatic chamber is very necessary for environmental simulating test…..
High and Low Temperature Damp Heat Climatic Chamber is mainly for testing and determining the parameters and performance of electrical, electronic products and materials upon the change of the environment in high-temperature, low-temperature or temperature humidity test.It is appropriate for testing material performance, such as resist heat, resist dry and resist cold.
High and Low Temperature Humidity Chamber capacities ranging from 50 to 1000 liters to accommodate many product sizes. Temperature Range: -70°C to +150°C.Humidity range:10% to 98% RH.We also provide custom temperature humidity chambers to meet individual size and performance needs.
- Electronic parts
- Home appliance
- Auto parts
- Telecommunications
- Aerospace industry
- LED lights
- Packagings
- Pharmaceuticals
- PV industry
- Working chamber corrosion resistance SUS#304 stainless steel material
- Input mode PT100 Temperature sensor
- Humidity sensor dry and wet bulb sensor
- 5.7 inch TEMI880 LCD controller,program with 99 groups,999 cycles
- RS232 computer interface and software
- France “Tecumseh” compressor or Hermetic Refrigeration Compressors
- Environment friendly Refrigerant R404A & R23
- Steam humidifying,automatic water circulation loop,with functions of automatic filling water
- Air circulation for uniform airflow within the inner chamber.low noise fans
- Door seal adopts silicone rubber material which can avoid aging and hardening in high low temperature conditions.
- 50mm diameter cable port comes standard on the left side of the chamber
- With larger transparent viewing window and lighting inside to observe the test
- Energy efficient, long life span Philip lighting
- Casters for easy moving during installation or relocation
- Adjustable shelves
