JDMIX - Model D-Series -Inline Static Mixers

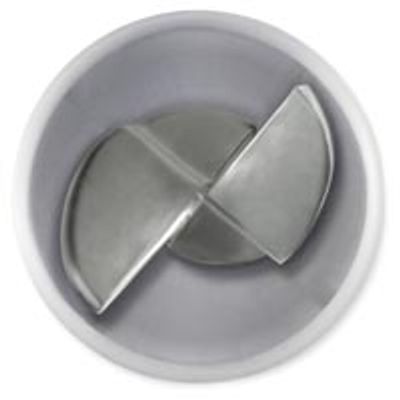

The JDMIX, Inc. “D” Series inline mixers are specifically designed for use where an additive to the main pipeline flow can be injected right into the mixer body. These unique inline mixers have four mixing zones between each element set. Inside each zone, the increased turbulence realized ensures that the chemical additives are dispersed throughout the circumference of the pipeline. The first section of the element redirects the flow from the top of the pipe wall, forcing it to the bottom. The second section reverses the process, forcing the flow back to the top. The same mixing action takes place from side-to-side of the pipe wall. Using between two and six mixing elements, with velocities ranging from 1 – 10 feet per second, mixing is completed. In addition, the angles of the elements can be changed to meet pressure drop restrictions in gravity feed applications, or where pump pressure is limited.
