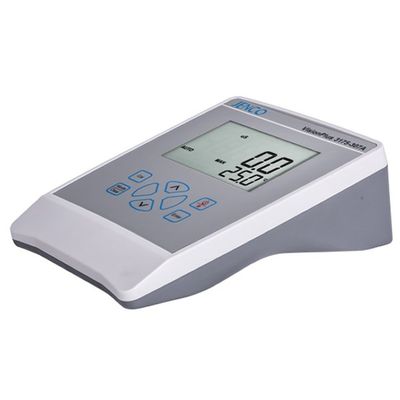

Jenco - Model EC3175 -Conductivity Benchtop Meter

SHARE

Jenco EC3175 is a new conductivity meter with temperature readout, backlit LCD display, selectable cell constant and a streamlined look.This benchtop meter is RoHS compliant.

Most popular related searches
benchtop meter
conductivity/TDS/salinity monitoring
conductivity/TDS
conductivity monitoring
TDS range
benchtop conductivity
benchtop conductivity meters
benchtop conductivity meter
conductivity cell
RoHS compliance
  • Clear, large LCD display with backlight
  • Displays Conductivity/TDS and temperature at same time
  • Accepts 2-wire conductivity cells with adjustable k=0.01, k=0.1, k=1 and k=10 cell constants for improved flexibility and accuracy
  • Convenient one point calibration
  • Calibration data is stored in memory and is ready for use on power up
  • Automatically selects one of three conductivity ranges to display readings
  • Readings are automatically compensated for temperature (ATC)
  • Meter automatically switches into manual compensation when temperature probe is not present
  • Intuitive operation with membrane keypad with tactile and audio feedback.
  • Splash resistant case is made with durable, reinforced plastic for added protection. protective covers for connectors are included
  • Smaller case does not clutter valuable desk space
  • 8pin DIN connector for conductivity cell & 10k thermistor
  • AC adaptor or battery power
  • Conductivity/TDS Range K=0.010.000 uS/cm to 19.99 uS/cm / 0.000 mg/L to 19.99 mg/L
  • Conductivity/TDS Resolution K=0.010.001 uS/cm ; 0.01 uS/cm / 0.001 mg/L ; 0.01 mg/L
  • Conductivity/TDS Accuracy K=0.01±0.5% F.S.
  • Conductivity/TDS Range K=0.10.00 uS/cm to 199.9 uS/cm / 0.00 mg/L to 199.9 mg/L
  • Conductivity/TDS Resolution K=0.10.01 uS/cm ; 0.1uS/cm / 0.01 mg/L ; 0.1mg/L
  • Conductivity/TDS Accuracy K=0.1±0.5% F.S.
  • Conductivity/TDS Range K=10.0 uS/cm to 19.99 mS/cm / 0.0 mg/L to 19.99 g/L
  • Conductivity/TDS Resolution K=10.1 uS/cm ; 1 uS/cm ; 0.01 mS/cm / 0.1 mg/L ; 1 mg/L ; 0.01 g/L
  • Conductivity/TDS Accuracy K=1± 0.5% F.S.
  • Conductivity/TDS Range K=100 uS/cm to 199.9 mS/cm / 0 mg/L to 199.9 g/L
  • Conductivity/TDS Resolution K=101 uS/cm ; 0.01 mS/cm ; 0.1 mS/cm / 1 mg/L ; 0.01 g/L ; 0.1 g/L
  • Conductivity/TDS Accuracy K=10± 0.5% F.S.
  • Temperature Range0.0 to 100.0 °C
  • Temperature Resolution0.1 °C
  • Temperature Accuracy±0.2 °C
  • Reference Temperature15.0 to 25.0 °C, default 25.0 ?
  • Temperature Coefficient0.00 to 4.00%, default 1.91%
  • TDS Factor0.30 ~ 1.00, default 0.65
  • Basic Cell ConstantK=0.01, K=0.1, k=1.0 or k=10, user selectable
  • Power Supply100 ~ 240 VAC adapter or AAA x 6
  • Calibration BackupYes
  • Audio FeedbackAll touch keys
  • Auto RangingYes
  • Ambient Temperature Range0 to 50 °C
  • ATC ProbeThermistor, 10k ohm
  • Dimensions (w x d x h )150 x 203 x 72 mm
  • Weight504 grams (excluding batteries)
  • Conductivity reference temp.: 15.0 to 25.0 °C, user selectable at 0.1 °C increment
  • Conductivity temp. coefficient: 0.00 to 4.00 %, user selectable at 0.01 % increment
  • Basic cell constant: K=0.01, K=0.1, k=1.0 or k=10, user selectable
  • Power supply: 6 x AAA batteries or 115/230 V AC adapter
  • Calibration backup: Yes
  • Audio feedback: All touch keys
  • End point sensing & hold: Yes
  • Auto ranging: Yes
  • Ambient temp. range: 0 to 50 °C
  • ATC probe: Thermistor, 10k ohm
  • Dimensions (w x d x h ): 150 mm x 203 mm x 72 mm
  • Weight: 504 grams (excluding batteries)
