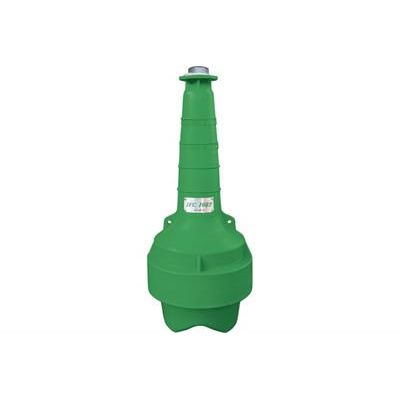

JFC - Model NAV01 Ø600mm -Navigation Buoys
Manufactured from strong durable polyethylene. Fully foam filled with internal ballast for stability. The Buoy is small and lightweight and has a pillar design with a Nominal Focal Height of 1.5 meters. Fitted with two lifting eyes for ease of manoeuvrability during installation and servicing. The buoys can also be customised with graphics and can be fitted with small self-contained lanterns.
Most popular related searches
- Manufactured from marine grade (UV stabilised) virgin polyethylene
- Small and lightweight, easy to handle.
- Buoy can be fitted with a M550 or M660 Lanterns
- All fixings are 316 stainless steel.
- Fitted with lifting eyes for ease of installation and maintenance.
- All JFC Marine Buoys are manufactured using 100% recyclable material.
- Manufactured to ISO 9001 : 2015 quality assurance systems
- JFC Marine is a member of IALA (Association of Marine Aids to Navigation and lighthouse Authorities)
- JFC buoys and lanterns are manufactured in accordance with IALA guidelines
Description
- NAV01 Ø600mm Navigation Buoy
Diameter
- 600mm
Nominal Focal Height
- 1100mm
Nominal Height
- 1550mm
Nominal Draft
- 250mm
Nominal Weight
- 70kg
Colours
- In accordance with IALA Maritime Buoyage System
Life Expectancy
- Up to 20 Years
Lantern Options
- M550, M660
