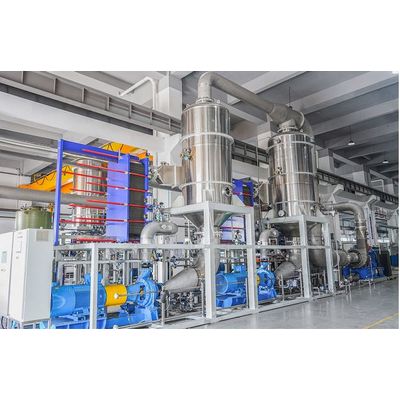

Jiarong - Model I-FLASH MVR -Contamination-Resistant Evaporator

Standard modular design

• Fully integrated skid-mounted design with compact occupation, only half the height of conventional design.
• Minimal construction requirements
• Forecast-based inventory strategies of standard products to enable rapid delivery
• Simple installation, quick on-site installation period, prevent cross-construction to ensure construction safety

Efficient contaminant resistance

• High-flow forced circulation with excellent turbulence flushing effect
• Separate the heat exchange surface from the evaporation surface,significantly reducing the risk of scaling and coking on heat exchange surface
• Applicable for high viscosity and scaling-prone fluid
• Patented wide flow path design provides high turbulence and high shear force to prevent scaling and fouling Suitable for high pollution load conditions
• Significantly higher heat transfer efficiency than conventional tubular heat exchangers

Negative pressure low temperature evaporation

• Negative pressure low temperature evaporation technology(evaporation temperature  around 70?),greatly improve permeate water quality
• Noticeably reduce scaling and material corrosion trends, extending cleaning cycles and service life
• Negative pressure condition effectively prevents secondary gas pollution

High-quality manufacturing with artisan spirit. Stable and superior performance

• Adopt with corrosion-resistant titanium, 2507 special stainless steel materials
• 6S standard production line

Digital intelligent control

• Advanced data-based cloud platform management
• Real-time remote monitoring, failure analysis and risk warning in advance
• PLC Intelligent control, one button start-up &shut-down, simple operation and maintenance
• Comprehensive CIP online cleaning program to reduced manpower load and avoid offline manual cleaning
