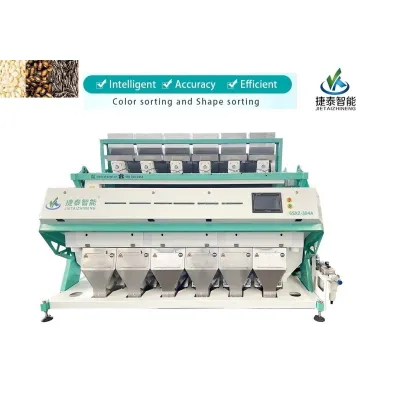

Jietai Zhineng - Model 6SXZ-384A -High Precision Sesame Color Sorting Machine
The JIETAI High Yield Sesame Color Sorter is designed to optimize the sorting process of sesame seeds, offering unparalleled precision with its advanced optical sorting technology. Equipped with RGB CCD sensors, this machine efficiently identifies and separates seeds based on color variations. Featuring 6 chutes and 384 channels, it achieves a throughput of 4-8 tons per hour with a remarkable accuracy rate of 99.99%. It operates at a power consumption of 3.5 kWh and requires a power voltage of 220V/50Hz. The machine employs solenoid valves controlled by signals from light intensity variations detected by the CCD sensors, ensuring accurate sorting. With dimensions of 2800*1560*1800mm and a weight of 1350kg, it stands as a robust solution for high-capacity operations. Suitable for various seeds and adaptable to changing needs, this sorter enhances efficiency in agricultural and food processing sectors by providing consistent and reliable sorting performance.Power: 220V/50HZ
Type: Rice Sorting Machine
Condition: New
Production Capacity: 4-6T/H
Color: Blue
Sorting Accuracy(%): ≥99.99
Power(w): 3.5KW
High Light: Optical sesame color sorter, 6 Chutes sesame color sorter, 6 Chutes optical sorting machine
JIETAI Seeds Color Sorter Machine, designed for kinds of Seeds,sunflower seeds ,pumpkin seeds and other types of seeds.RGB CCD Optical Rice Sorting Machine,1 Chute, 2 Chutes,3 Chutes,4 Chutes,5 Chutes, 6 Chutes,7 Chutes,8 Chutes,10 Chutes,12 Chutes are available.You can get best quality seeds color sorter machine and other materials color sorter machine here.
MODEL: 6SXZ-448A
Chutes/Channels: 6/384
Throughput(T/H): 4-8
Accuracy(Percent): ≥99.99%
Power(Kwh): 3.5
Power Voltage: 220V/50Hz
Air compressure(Mpa): <2.2
Weight(Kg): 1350
Dimension(L*W*H): 2800*1560*1800mm
Raw Material are put into the machine from its feeding hopper on the top,vibrated by vibration device and sliding along material chute into the zone of observationin sorting chamberthrough sensor andbackground plate.Under the effect of light source,CCD sensor receives compound light from materials being sorted.According to the light intensity and color changes,make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
