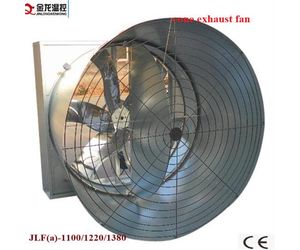

JINLONG - Model cone fan -Butterfly cone exhaust fan
Cone type exhaust fan Our cone type exhaust fan have the advantage : 1. reasonable cone designing with big air volume ,low noise 2. imported bearing,high –strength ,low noise and long service life 3. shutter are made of high strength hot-galvanized steel sheet,anti-tioxidant, light weight and no distortions 4. high strength dabber aluminium-magnesium alloy wheel.hight strength and long service life 5. Mirror designed and injection moulding Stainless steel balde,with big air volume,never distortion and broken 6. high efficient and energy-saving motor with ccc certificate ,protection class:IP55,insulation class:F gradeMost popular related searches
54" poultry butterfly cone exhaust fan
Cone type exhaust fan
Our cone type exhaust fan have the advantage :
- reasonable cone designing with big air volume ,low noise
- imported bearing,high –strength ,low noise and long service life
- shutter are made of high strength hot-galvanized steel sheet,anti-tioxidant, light weight and no distortions
- high strength dabber aluminium-magnesium alloy wheel.hight strength and long service life
- Mirror designed and injection moulding Stainless steel balde,with big air volume,never distortion and broken
- high efficient and energy-saving motor with ccc certificate ,protection class:IP55,insulation class:F grade
Technical datas:
|
Model specifications |
Diameter biades- mm |
Blades rotational speed- rpm |
Motor rotational speed- rpm |
Air flow m3/h |
Total pressure |
Noise decibels |
Import power (w) |
Rated voltage (v) |
High |
Width |
Thick |
|
JLF-1100 |
1000 |
600 |
1400 |
36000 |
70 |
≤65 |
750 |
380 |
1100 |
1100 |
1150 |
|
JLF-1220 |
1100 |
460 |
1400 |
41000 |
73 |
≤65 |
750 |
380 |
1220 |
1220 |
1200 |
|
JLF-1380 |
1250 |
439 |
1400 |
51020 |
80 |
≤65 |
1100 |
380 |
1380 |
1380 |
1300 |
|
|
|
|
|
|
|
|
|
|
|
|
|
