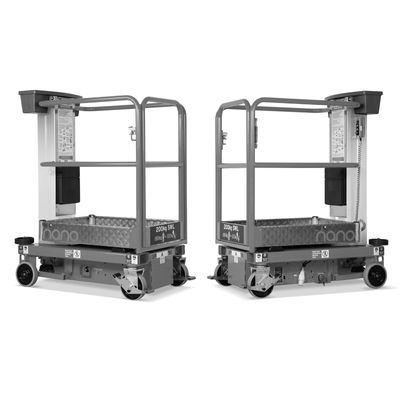

JLG - Model Nano -Push Around Mast Lift
The Nano is usually the preferred choice where the application requires a smaller footprint, yet large platform area. Construction: ideal for finish work, multi-story projects. Used by mechanical, electrical and HVAC contractors, dry-walling carpenters, painters, etc. Facility Maintenance: Cleaning, painting, decorating and general building maintenance in offices, schools, hospitals, institutional and industrial maintenance.
Most popular related searches
- Platform Height: 2.50 m / 8.2 ft
- Machine Width: 0.75 m / 2.5 ft
Dimensional Data
- Machine Height: 1.56 m / 5.1 ft
- Machine Length: 1.19 m / 3.9 ft
- Machine Width: 0.75 m / 2.5 ft
- Platform Dimension A: 0.75 m / 2.5 ft
- Platform Dimension B: 0.10 m / 0.3 ft
- Platform Height: 2.50 m / 8.2 ft
Reach Specifications
- Platform Height: 2.50 m / 8.2 ft
- Working Height: 4.50 m / 14.8 ft
Performance Data
- Outriggers or Stabilizers: No
- Platform Capacity: 200 kg / 440.9 lb
General Specifications
- Machine Weight: 285 kg / 628.3 lb
