JONO - Model MPF Series -Mobile Tracked Impact Crusher

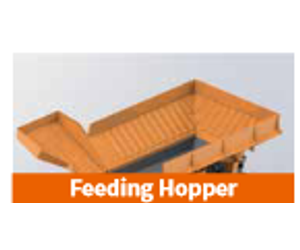

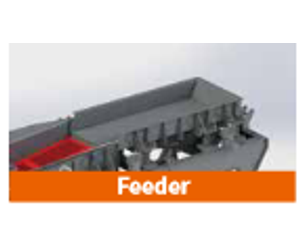

Fully hydtaullcalty operated, no manual fixing requited; unfolded during work to increase capacity; folded during transport to meet transport needs; hydraulically locked for convenience; high wear-resistant lining on the Inside to extend service life.

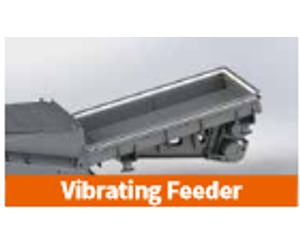

Frequency-controlled. The feed speed can be controlled automatically or manually according to the load detection of the Impact crusher; equipped with wear-resistant lining plate and easy to replace.

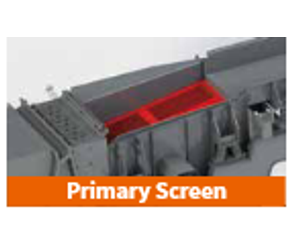

Heavy duty screen applied for structural stability; separate primary screen applied for higher screening efficiency than the monolithic type, reducing wear costs on the crushing chamber; double deck screen with different combinations of upper and lower deck; discharge to the side conveyor or the vibratory discharger and then to the main conveyor.

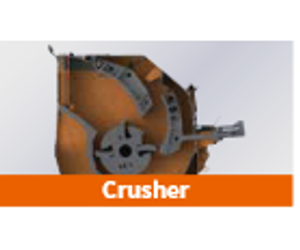

It is directly driven by hydraulic coupling wilh high efficiency. Multilayer chain curtain with rubber curtain and chain curtain ensures higher safety and less dust. The rotor speed Is adjustable, and the rotor Is designed anti-winding. The hammer wedge block locking mechanism Is easily disassembled. The hydraulic assisted adjustment of the impact plate is adjusted easily and fast. The belt tension mechanism of the main machine is simply operated and works reliably.

It Is Installed underneath the main crusher machine, which Is more able to withstand the direct impact of larger materials than a belt conveyor; it is equipped with a wear-resistant liner, which extends the service life and Is easy to replace.

Dust protection device to reduce dust pollution; the lower part of the iron remover Is made of stainless steel to prevent magnetization; the height of the discharger can be adjusted by means of a hydraulic system to facilitate maintenance; the head can be folded to save the space during transportation.

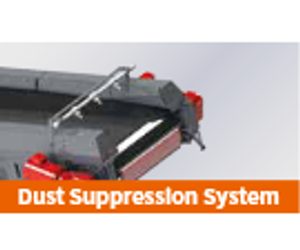

Dust suppression system is effective in reducing dust emission and air pollution.

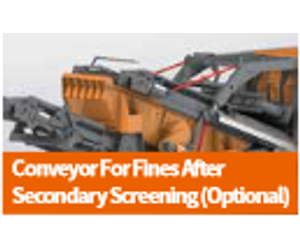

Oversized material can be returned for re-crushing, with adjustable installation inclination angle and high screening efficiency; industry leading vibrating motor with simple and reliable excitation vibrating structure, easy to Install; conveyor head can be folded to save space In transportation; conveyor for fines after secondary screening can be quickly Installed and dismantled.

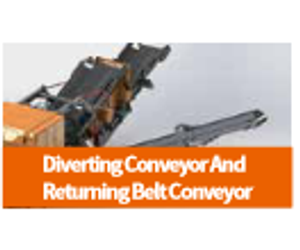

The tall section can be rotated for returning or side discharging; the head and tail section of the conveyor can be folded to meet transport requirements; the inner side has wear plates for longer service life; both sides are designed with guard plates to prevent material leakage. Sweeper design could avoid material sticking: optional left/right side

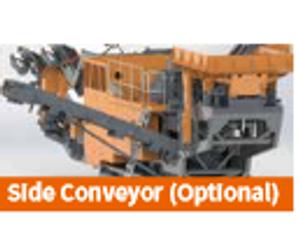

Sweeper design could avoid material sticking; optional left/right side discharge of the frame; foldable to meet transport dimensions.

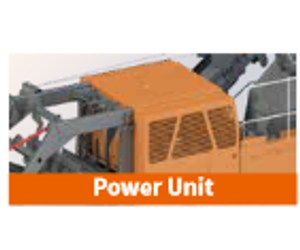

Compact layout, stable and reliable rotation o( the fluid coupling for long and stable operation; available in hybrid or diesel drive version.
