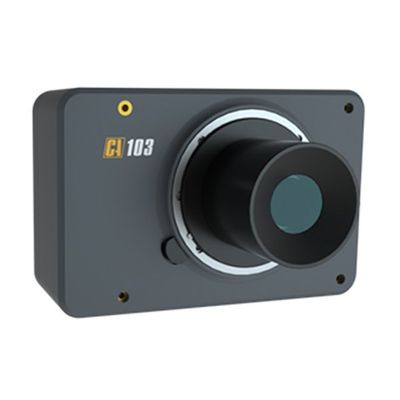

JOUAV - Model CA-103 -RGB Camera

FromJOUAV
SHARE

Designed for photogrammetry flight missions, CA-103 Aerial Camera offers a remarkable accuracy and efficiency. This high-resolution sensor combines a wide-angle JAL-35 lens, shock absorber, and high-contrast images for accurate color reproduction even in low-light conditions.

Most popular related searches
shock absorber
noise control
screw bottom
photogrammetry
light sensor

With the back-illuminated structure and effective noise reduction techniques, CA-103 Aerial Camera delivers extremely low-noise and high sensitivity performance while maintain high speed continues shooting and much, much more.

61.0MP Full-frame Back-illuminated Exmor R CMOS Sensor
Exibit incomparable high resolution, high sensitivity, and low noise

Wide Standard ISO 100-32000 Range
Can be used in sports low light or smaller aperture

Vast Mapping Coverage
CA-103 can change the orientation during the flight to obtain a wide field of view and reduce the blurriness of images

Well-designed Shock Absorbing Bottom Plate
The shock-absorbing base plate is designed with 4-corner protection to ensure a high-quality picture from the camera

Greater Buffer Memory and System Speed
Because of greater buffer memory and system speed, CA-103 allows you to capture up to 10 images in continuous shooting

Easy to Connect
The body mounting are designed with a self-locking drawer construction that allows for easy connection and removal from the drone

Sensor

  • CCD NO. : 1
  • CMOS Size :35.7mm×23.8mm(35mm full frame)
  • Focus Sensor : Exmor R CMOS
  • Pixel Size : Approx. 3.756um
  • Effective Pixels NO. : 61.0 megapixels
  • Image Resolution : 9504×6336

Photography

  • ISO :Still/Dynamic Images:ISO 100-32000 Auto:ISO 100-12800
  • Shutter Speed :Still Images:1/8000sec - 30sec,B
  • Focus Lens(mm): 35mm
  • Image Format :RAW,JPEG( Extra fine,Fine,RAW)
  • Shooting Modes : Single Shooting, Continuous shooting (Hi+/Hi/Mid/Lo selectable)
  • Continuous Shooting
    • Hi+ :MAX. 10 Photos/s
    • Hi :MAX. 8 Photos/s
    • Mid:MAX. 6 Photos/s
    • Lo:MAX. 3 Photos/s
  • Exposure Interval :
    • ?0.8s (>Continuous 50 photos)
    • ?1.2s (>Continuous 100 photos)

Configuration

  • Lens Compatibility :Sony E-mount lenses
  • Storage :
    • Photo:256GB×1 TF SDHC memory card
    • POS:16GB×1 TF SDHC memory card
  • Explosure :High pulse exposure/manual single shot : Differential GPS
  • High pulse feedback

Physical

  • Power Voltage : 12~36V
  • Weight :Approx. 420g
  • Dimension : 119 mm × 78.5 mm × 48.4 mm
  • Mounting : M3 screw mounting on bottom

Working Temperature

  • 0?-40?
