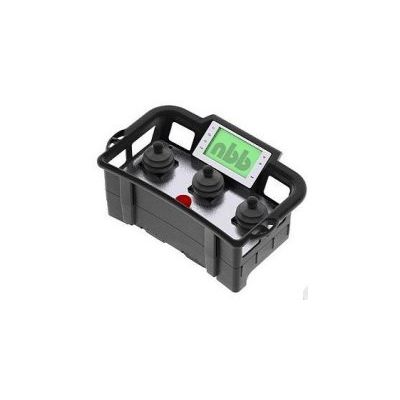

NBB - Model Nano-M SMJ -Joystick Transmitter with Display
Biggest remote in the NBB product range with a big variety of various versions for a wide and complex range of applications.
- Frequency band EU: 434,050 - 434,750 Mhz, 866 - 870 MHz
- Frequency band USA: 433,100 - 434,750 MHz 915 MHz
- RF output: < or = 10 mW
- Typical operating range: 100 - 300 m
- Antenna: integrated
- Response time of
- control command: 15 ms
- SMJ-Technology 1: easy change of the joystick
- Advance alert "battery empty": 15 minutes
- Datafeedback:
- Range, transmission signal strength, status of the machine function and customer-specific feedback information and logos on request
- Display on 4.3 LCD color display
- Number of pixels: 480 x 272
- Operating temperature: -20 to 70 ℃ (status display separate in 2x7 segment display)
- Operating temperature range: - 20 to + 65°C
- Weight: 3 500 g

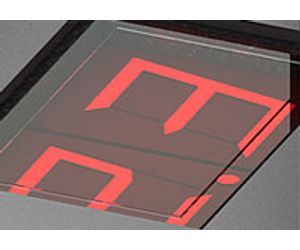

- Status indication: 2 x 7-segment functional display (LED)
Equipment safety
- CE label: yes
- IP-Protection Class: IP65

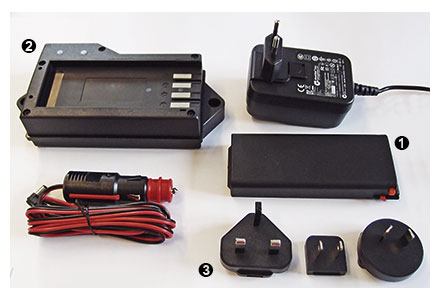

NBB battery system 1
- Quick-change battery system: NiMH / 1500 mAh
- Voltage: 7,2 V
- Operating time: 60 hours
- Charging time approx.: 1 hour
- Charging technology: external via charger
- Measurements: 126 x 47 x 18 mm
- Weight: 195 g
Additional Information:
- Self-cleaning contacts of the battery
- Wear parts are always on the battery side
Battery Charger 2
- Suitable for: 230 V/AC, 110 V/AC,
- 12/24 V/DC
- Optional plug form: 3 EU, USA, JP, GB, AU
Temperature measurement for an improved recharging
LBT frequency search
When switching on or when switching the frequency, a check is made to determine whether the frequency channel used is reserved by another transmitter. If this is the case, the next frequency channel is checked until it is ensured that the transmitter can operate without faults.
LBT is short for Listen before Talk.
Design as cable console
For radio-critical work areas, the operating unit can be supplied on request as a cable console with the same functional equipment and not as a transmitter.
