Shanghai JSN Micro Flow Meter Co., Ltd.

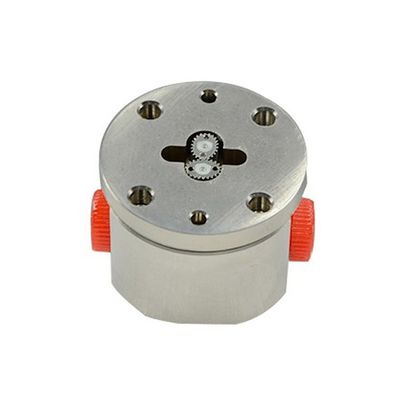

JSNModel CX-M2.1-SS -Low Micro Flow Meter

SHARE

Our low micro flow meter is a kind of oval gear flow meter ,along to positive displacement flow meter. there is thousands of manufacturers who can produce oval gear flow meter. but only several manufacturer who have technology to produce micro liquid flow meter. JSN micro flow meter offer the highest accuracy and measure for various viscosity liquid. special patent technology to measure flow from 0.1ml/min and ensure working life more 5 years. SN low micro flow meter is wildly used for various industries for precision measurement. So far it has been serviced for more 100 using condition, such as fuel oil measurement, Adhesive control ,Hydraulic life cycle testing, electrolyte dosing, natural gas odorization.

Most popular related searches
  • Model : CX-M2.1-SS
  • Flow Range : 0.5~150 ml/min
  • Accuracy : 0.2% or 0.5%
  • Temperature : -30~80C
  • Pressure : 32 Bae
  • Output : Square-wave pulse(reed switch or hall sensor)
  • Supply : 4~26 VDC
  • Material : All stainless steel material
  • The low micro flow meter flow range is 0.3~150 ml/min;
  • The temperature is 200C and the max pressure is 1000Bar;
  • The standard type accuracy is 0.5%,the max accuracy is 0.2% for some special industry;
  • The flow meter with longer working life by the all stainless steel material;
  • Wide range of application,such as the hydraulic system,Lubriting industry and painting.
  • The flow range ratio beyond 100:1.
