JT - Ideal Bendable Camera System

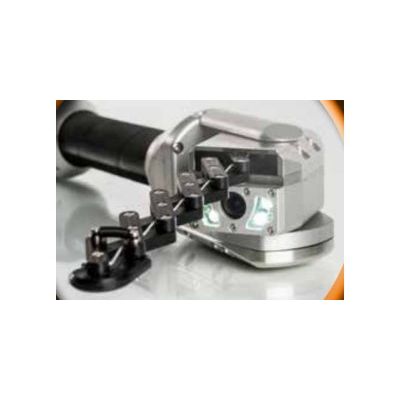

The “Lindauer Schere (LS)” is a patented (DE 101 02 056 B4) bendable pan and rotate colour camera for the holistic recording and documentation of lateral sewer systems with branches. The technology of the LS makes it possible, starting from revision openings and manholes as well as the satellite camera, to inspect and to document the entire ground drainage system with all pipes and ramifications from the main sewer. Additionally the LS measures them in connection with the 3D sewage measurement system ASYS.
The camera is flushed in or pushed by different drive possibilities into the sewage lines and positioned in front of the branch to be examined. For the bending process, the special shear mechanics are activated. If the tip of the shear has found a skewback, the camera is moved into the connection whereby the pressure movement on the wall of the pipe is used. After successful turning, the shear mechanics that are necessary only for turning and overcoming the sockets, offset and barriers are completely retracted into the camera housing. Several branches can now be pushed through or flushed through by the same procedure. The principle of the retractable guide device allows always a free and clear camera image. One of the main criteria for the density of pipes are perfect pipe connections. With the LS, these can be completely panned by 90 degrees and circled by 360 degrees. Not easily accessible places can also be panned and inspected by using the retractable guide mechanics, which are unique on the market.
- Inspection of branched pipe systems from DN 100 to DN 200
- Camera height: 71 mm, camera width: 60 mm / total: 375 mm
- Resolution: 752 (horizontal) x 582 (vertical)
- High intensity LED illumination
- Automatic iris control
- Manual focusing
- Pan range 250° horizontal / ∞ radial
- Fokus area: 1 cm - ∞
- Range to 40 m in the lateral pipe (pushing technology)
- Range up to 120 m in the lateral pipe (water high pressure technology)
- Optional pressure monitoring and explosion protection certificate
