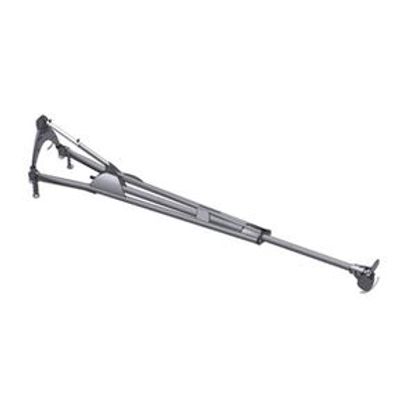

Jumbomix - Model 7,50 m -Mixer

Shaft supported by 4 bearings: 2 tapered with conical clamping elements at the tractor end, 2 intermediate bearings for stabilization.

Most popular related searches

Frame completely of hot-dip galvazined steel,
reinforced by two lateral tubes and one square tube at the top
Thick-walled outer tube, reinforced and galvanized (125 mm)
Pinion shaft 1 ¾ " (50 mm, shaft 55 mm)
Three-point hitching system
Massive support
Hydraulic cylinder (double-acting) for adjustment of entry angle
High-strength stainless steel propeller (2 blades) - double reinforced (dia.: 650 mm)
Cutter knife at the propeller
Standard total length: approx. 7.40 m
Max. speed: 1000 rpm short-time duty, 800 rpm continuous duty
