JUMO - Hygrostats

Hygrostats are primarily used as simple two-state controllers to control the relative humidity in conditioning cabinets and air ducts as well as to control air humidifiers and dehumidifiers in the building technology industry.

Most popular related searches

General Technical Data

Measurement medium: Air, pressureless (non-aggressive)
Outputs: Switching output, floating changeover contact max. AC 250 V/15 A, depending on the version, also with double contact.
Measuring range: RH = 30 to 100 % RH
Application: Humidifying and dehumidifying, storerooms, cold-storage rooms, greenhouses, control cabinets

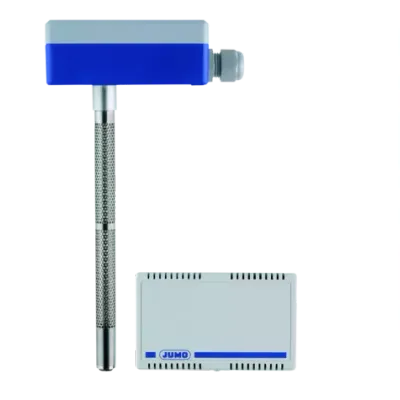

Version: Indoor and duct version
Protection type: IP20 indoor version, IP64 duct version
Sensing element: Hygrometric (water-resistant element)
Special features: Indoor version also suitable for flush-mounted box assembly, duct version can be used permanently in high humidity, mains voltage not required, sensing element largely maintenance-free, adjustment protection
Accessories: Holders, sun and rain protection, filter tubes
