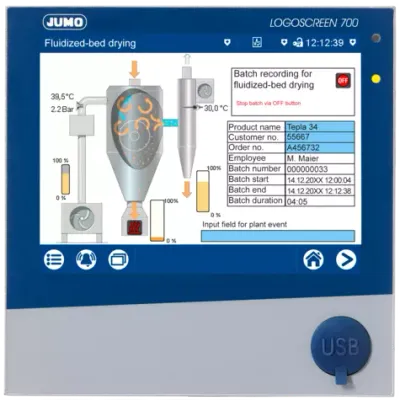

JUMO - Model LOGOSCREEN 700 -Highly Scalable Paperless Recorder

SHARE

The JUMO LOGOSCREEN 700 paperless recorder is characterized by an intuitive, icon-based operation and visualization concept that makes operation easy. It is available in multiple versions for process data acquisition and can be adapted flexibly.

Most popular related searches
process data acquisition
temperature recorder
water protection
pharmaceutical water
furnace
pharmaceuticals wastewater
construction site water
pharmaceutical wastewater
  • Display: 5.7" TFT color screen (640 × 480 pixels, 16-bit color depth) with resistive touchscreen
  • Inputs and outputs: Up to 18 measurement inputs (universal analog inputs); up to 3 analog outputs; up to 18 digital inputs; up to 24 individually switchable digital inputs/outputs, including up to 8 high-speed counting inputs (up to 12.5 kHz); up to 7 relay outputs (changeover contacts)
  • Inputs via interface: 120 external analog inputs and 120 external digital inputs as well as 74 external texts (64 batch texts, 10 event texts)
  • Internal channels (standard): 30 counters/integrators, 10 group reports (min./max./average)
  • Internal channels (optional): 20 math channels, 20 logic channels, up to 8 high-speed counter channels, ST code with 40 input and 40 output variables each
  • Recording channels: 60 analog signals, 60 digital signals, 120 alarm signals, 30 × counter channels (internal); up to 10 measuring groups
  • Memory: 1 GB; variable cycle time as of 125 ms; data export via external storage media (e.g. USB flash drive)
  • Interfaces (standard): RS232/485 for barcode scanner or Modbus master/slave; Ethernet (Modbus TCP master/slave); USB (host/device)
  • Interfaces (optional): PROFINET IO device, NMEA 0183
  • Housing: Front frame made of die-cast zinc with decorative foil, flush-mounted housing according to DIN IEC 61554 made of zinc-plated steel sheet
  • Approvals: cULus, FDA compliant according to 21 CFR Part 11 (extra code 888), AMS2750/CQI-9 (extra code)
  • Special features: Up to 10 customer-specific process images; lifecycle data management; up to 2 auxiliary / limit lines per measuring channel in horizontal or vertical diagram; HTML-based, browser-independent web server; display of process values via app on smartphone and tablet; intuitive icon-based operating and visualization concept; SNTP time synchronization; up to 8 high-speed counting inputs (12.5kHz); up to 5 batch protocols; automatic batch, trend or report printout possible; up to 5/50 users; tamper detection with digital certificate (extra code 887), own application via structured text (ST code; extra code); own web server design possible; installation depth < 119 mm; connection of GPS sensors (NMEA 0183 format)
  • Application areas: Process visualization and paperless recording of analog and digital process data in various industries such as industrial furnace construction, pharmaceutical, food, and water/wastewater.
  • Protection type: At the front IP65, at the rear IP20
  • Voltage supply: AC 110 to 240 V +10/-15 %, 48 to 63 Hz or AC/DC 20 to 30 V, 48 to 63 Hz
