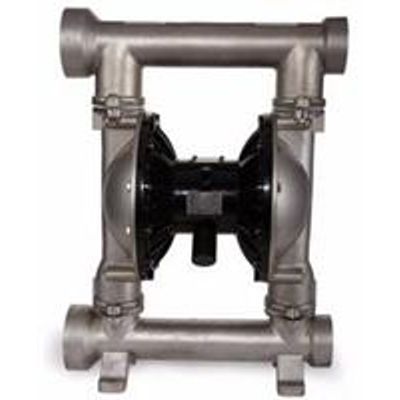

Jushi - Model QBY -Diaphragm Pump

SHARE

Zhejiang Jushi Pump Co.,Ltd manufacture QBY pneumatic operated double diaphragm pumps diaphragm pumpis not only capable of exhausting the flow liquid , but also can conveysome uneasy flowed medium, with the merits of self-priming pump, diving pump,shield pump, slurry pump and impurity pump etc.

Most popular related searches
diaphragm pump
self-priming pump
double diaphragm pump
slurry pump
liquid separation
corrosive liquid
pneumatic diaphragm pump
diaphragm sealing

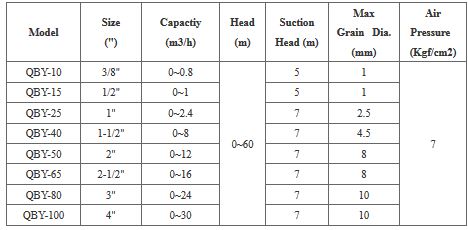

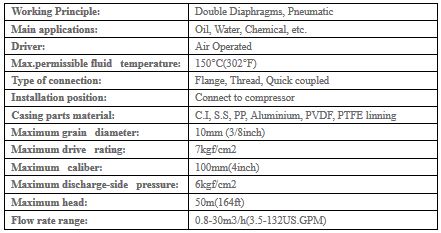

  • Type: diaphragm pump
  • Flow: 0.8-30m3/h
  • Head: 60m
  • Material: Cast Iron,PTFE, Stainless steel
  • Brand: Johames
  • Application: peanut, pickles, tomato slurry, red sausage, chocolate, hops, syrup, paint, pigment, glue,  adhesive, glazed slurries of tile, porcelain, brick, chinaware, grinding materials, corrosive agent, clean t
  • No electricity. It`s safe and reliable while in the flammableand explore places.
  • Pump has no rotary parts and bearing seals. The diaphragm willcompletely separate the exhausted medium and pump running parts, working medium.There’s no leakage, thus it doesn’t cause environmental pollution and humanbody safety dangerous while exhausting the toxin and flammable or corrosivemedium.
  • It`s convenient to use and reliable to work. This pump issimple in structure and easy to be installed and maintained.
  • The medium conveyed doesn’t touch the matched pneumatic valveand coupling lever etc. While normal pumps’ performance will be decreasedgradually because of the damages of driving parts.
  • This pump doesn’t need oil lubricant, even works in dry run.
  • The pump transports various toxin, flammable, volatility strong acid, alkali and corrosive liquid etc.
  • The pump may suck the peanut, pickles, tomato slurry, redsausage, chocolate, hops, syrup, paint, pigment, glue,   adhesive, glazedslurries of tile, porcelain, brick, chinaware, grinding materials, corrosiveagent, clean the oil dirt, wedge water, cement slurry and mortar etc.
  • It can be used as a front-step transmission device of thesolid and liquid separation equipment.
