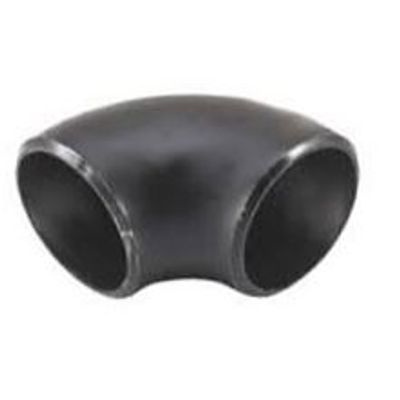

Kamlesh - Model ASME B16.9 -Buttweld 90° Short Radius Elbow

ASME B16.9 Buttweld 90° Short Radius Elbow , ASME B16.9 Buttweld 90° Short Radius Elbow Dimensions, ASME B16.9 Buttweld 90° Short Radius Elbow at best price with high quality, tee dimensions asme b16 9, asme b16.9 elbow, asme b16.9 end cap dimensions, asme b16.9 equal tee dimensions, asme b16.9 fittings, asme b16.9 lateral tee dimensions, asme b16.9 pipe cap dimensions, asme b16.9 stub end dimensions, asme b16 9 standard, asme b16 9 elbow, asme b16 9 fittings, asme b16 9 reducer, asme b16 9 tee

Kamlesh Metal (India) is a dynamic group, which was established over a decade ago to cater to growing demands of ASME B16.9 Buttweld 90° Short Radius Elbow standards in Elbow, Tee, Cross, Reducers, Nipple , Coupling etc in all materials like Stainless Steel , Carbon Steel & High Nickel Alloys. We Manufacture, Export and Supply Buttweld Fittings which meets with national and international quality standards and producing base which owns equipments conforming to international technical level and is well equipped with a whole set of advanced plasma refining equipments.

We manufacture all 3 groups of Fittings such as Buttweld (BW) fittings, Socket Weld (SW) fittings & Threaded (THD) fittings as per ASME B16.11 standards & other International standards. We export our high quality ASME B16.9 Buttweld 90° Short Radius Elbow to Kuwait, Egypt and Qatar.

• Stainless Steel ASME B16.9 Buttweld 90° Short Radius Elbow | Carbon Steel ASME B16.9 Buttweld 90° Short Radius Elbow | Nickel Alloys ASME B16.9 Buttweld 90° Short Radius Elbow
• Sizes: 1/2” TO 36” (SEAMLESS UPTO 24”) (WELDED 8” TO 36” )
• Standards: ASME / ANSI - B 16.9
• ASTM A403 - ASME SA403 - `Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings`
• API 590-605
• ASME B16.9 - `Factory-Made Wrought Buttwelding Fittings`
• ASME B16.25 - `Buttwelding Ends`
• ASME B16.28 - `Wrought Steel Buttwelding Short Radius Elbows and Returns`
• MSS SP-43 - `Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications`
• Schedule: Sch 5 TO Sch XXS.
• Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
• Type: Buttweld (BW)

• Carbon Steel:
• ASTM A234 Gr. WPB
• ASTM A420 Gr. WPL6
• ASTM A105
• ASTM A350 Gr. LF2
• Stainless Steel:
• ASTM A403 WP316/316L
• ASTM A403 WP304/304L
• ASTM A182 F316L, 304L

Packaging: ASME B16.9 Buttweld 90° Short Radius Elbow Flanges is sleeved into plastic bag individually, ten pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.

Prevent any damage.
During transportation items are tagged, packed in plastic bags and closed in carton boxes or seaworthy wooden cases.

plywood case,pallet and according to customer`s requirment

Marking: ASME B16.9 Buttweld 90° Short Radius Elbow Flanges are marked with alloy name, outside diameter, wall thickness and heat number. Additional information like standard and alloy numbers can be added on request.
