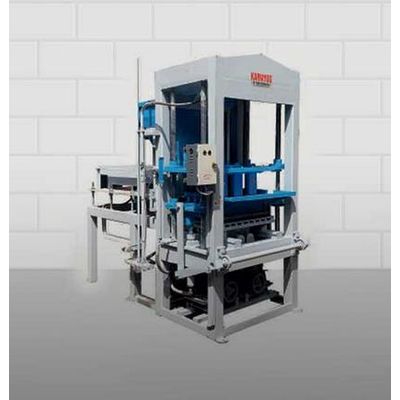

Karmayog - Manual Concrete Block Making Machine
KHM25 - Manual Concrete Block Making Machine is manufacture with unique technology having robust frame structure with improved Design made up of heavy steel with main cylinder specially designed by Karmyog Hi-Tech Machineries.
- Model No., KHM25
- Blocks/Pallets, 2 / 3 / 4 Blocks/Pallets
- Installed Capacity, 15HP / 12KW (3 Phase)
- Land Required, Minimum 1000 sq. meter
- Hydraulic Oil, 100 Ltrs.
- Production Capacity, 1000-1500 Blocks/Day (approx.)
- Hand Lever Operating System.
- Easy Operation.
- Less Mantainance.
- Equipped with safety features to avoid accidents.
- Provided with material feeding cart and storage hopper.
Fly ash brick /Concrete Blocks/Interlocking Paver making plant have been designed to manufacture fly ash bricks, Concrete Blocks and all types of paving blocks with Eco-friendly technology. It is a simple & cost-effective technology available in the country. The heart of the plant is an indigenously designed, a relatively low cost & high productivity machine. Other component machines of the plant Pan Mixer, Conveyor, Pallet trucks, Wheel Borrows & wooden Pallets are economically & efficiently designed to give a maximum output.
- Production Capacity: 1000-1500 Blocks/Day (Approx.)
- Block Size: 400x200x200 in mm. (or as per your requirement)
- Raw Materials: Sand /Stone Dust, Stone Chips 6 & 10mm and Cement
