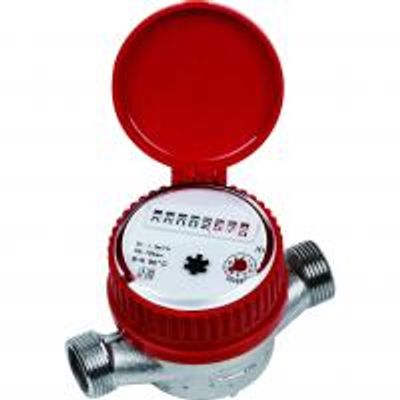

KAT - Single Jet Vane Whell Water Meter
Small in size and light in weight. Magnetic drive with lower transmission resister. Magnetic shield provides resistance to external magnet interference. Vacuum sealed dry dial register ensure the dial keeps long term clear reading under the condition of fog and moisture. Register can roate 360° for easy reading in any positon.
Most popular related searches
water metering
water meter
non-return valve
hot water meter
drinking water meter
drinking water
single jet water meter
jet water meter
drinking water pipeline
pulse valve
Applications
- Measuring the volume of hot potable water passing through the pipeline for residential application.
Available Sizes
- 1/2",3/4", 1", 1 1/2", 1 3/4"
- 15mm, 20mm, 25mm, 32mm,40mm
Standards
- ISO4064 Class B
Instllation Requirem
- The pipeline must be flushed before meter installation.
- The meter must be installed according to the arrow direction indicated on the meter body.
- The meter should be installed in horizontal position with dial face upwards.
- The meter should be constantly full of water during operation.
- Several lengths for meter body Dn13mm: 80mm,110mm,115mm
- Inlet strainer.
- Non-return valve.
- Pulse output option.
- Meter for hot water.
- Cubic meter(m³) and U.S.Gallon(USG) for choice.
- Maximum Working Temperature:
- 90℃ for hot potable water meter.
- Maximum Working Pressure: 16Bar
- Body: Corrosin Proof Copper Alloy
- Coupling Threads: BSP
