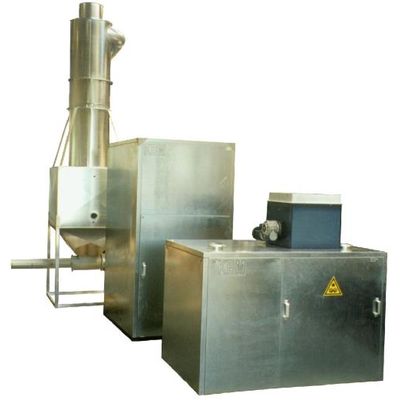

KBM - Jumbo Recycling System

The KBM JUMBO recycling plant for EPS and EPP is made for the very large shape moulding and block moulding operations.

The JUMBO recycling unit breaks down the material to individual beads homogeneous with new pre-expanded beads. This consequently results in minimization of uneven density distribution caused by de-mixing problems. Blocking of core vents due to dust and lumps of material causing hot wire cutting problems in terms of inaccurate sheets with bad surface are also minimized.

Thanks to the two step/double chamber system and the large sieve surface and granulation chamber the JUMBO recycling plant produces a high quality recycled material which contains a minimum of dust from waste production, cut-offs from block production or even from used EPS and EPP/EPE mouldings.

The recycled EPS and EPP material can be reused in shape moulding production in a ratio of at least 10-20 percent without any perceptible optical or physical change of the product quality. For block moulding 20-50 percent can be added.

As an extension to the JUMBO recycling plant, we offer metering/mixing systems compatible with the unit. All units can be delivered separately.

• The KBM Styromix units are available to give an individual and exact mixing of material for each moulding machine.


• For block production, Styrometer with two silos and metering/mixing station, to be placed just before the block mould, is available.

The dust is blown into the JUMBO cyclone dust compactor, which separate the dust from the air. The dust is collected in the lower part and is compacted into an octagonal rod with a density of 200-300 Kg/M3 (12-19 lbs/ft3). The air is returned from the cyclone air exhaustion into the granulator in a closed circuit. It replaces the large filter bags, which means that the daily cleaning of filter bags is eliminated and maintenance is reduced to a minimum.

For smaller shape or block moulding plants the MINI and MAXI recycling plants are available.
