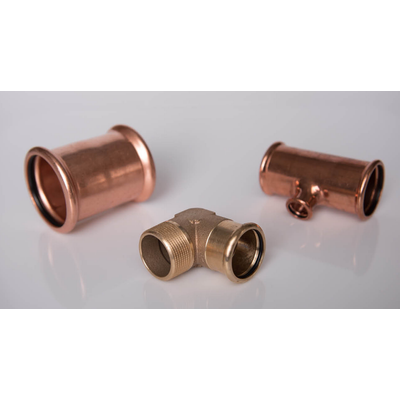

Ke Kelit - Model FIX -Copper Pipe System
Copper is a versatile material. Equally versatile are the applications of the thin-walled COPPERFIX copper press fitting system. It is state-of-the-art and, moreover, utterly simple to install. Further advantages include the low thermal expansion, the large cross-section and the non-detachable press connection, which makes COPPERFIX copper pipe systems unbeatably leakproof. COPPERFIX press fittings are made of CU-DHP (hot-drawn fittings) material, as well as bronze material 2.109 (threaded fittings). The COPPERFIX press fittings are “leak before pressed” and fitted with EPDM gaskets in the factory.
Most popular related searches
- Non-releasable press connection “leak before pressed”
- Low thermal longitudinal expansion
- Thin-walled, large cross-section – small dimensions
Operating conditions:
- Drinking water: -20°C to 110°C/10 bar; tmax 130°C
- Heating: -20°C to 110°C/16 bar; tmax 130°C
- Cooling: -20°C to 110°C/16 bar
- Solar: - 20°C to 200°C/10 bar; tmax 230°C (Viton O rings)
- Compressed air: -20°C to 110°C/10 bar
Material-number:
- Hot-drawn fittings: CU-DHP
- Threaded fittings: Bronze material CC 499K
Pipe Size:
- Pressfitting-system:
- d12, 15, 18, 22, 28, 35, 42, 54, 67, 76, 89, 108 mm
Tests:
- Copper and copper alloy fittings press fittings for metal-plated pipes EN 1254/7
- Drinking water suitability ÖNORM B 5014-1 and -2
- ÖVGW Reg.Nr. W 1.741
Specials:
- Viton O rings; resistant to temperatures up to 200°C
