Kee Safety - Model KeeLine -Safety Solution for Horizontal Life Lines for Overhead

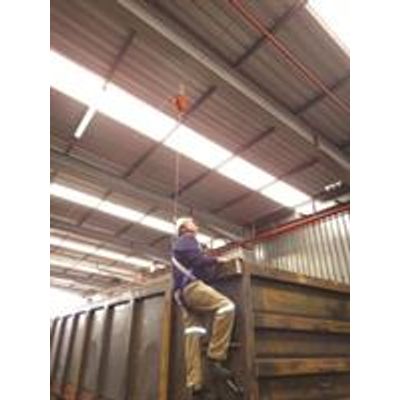

KEELINE Overhead provides personal protection for up to two users, used when it is beneficial to have the life line system mounted directly above the user for tasks including overhead crane access, vehicle loading, machine & building maintenance, cleaning and access.
Gr. 316 Stainless steel 5/16” (8mm) dia. wire and electro-polished components are used to ensure a low maintenance, durable solution.
The permanently attached two wheeled traveller smoothly passes the intermediate brackets even when the user is attached to a paid out length of a Self Retracting Life Line.
The system can be configured to allow single or multiple spans of up to 78` (24m) and the efficient patented KEELINE absorber minimises the end loads back to the supporting structure to below 2248lb (10kN).
KEELINE Overhead has been tested in conjunction with the Xcalibre ANSI compliant Self Retracting Lifelines (Fall Arrest Blocks), rated for users up to 300lb (136kg), that lock off in the event of a fall to minimise forces to an acceptable level.
- Suitable for single or multiple span systems
- Spans of up to 78` (24m) in between supports
- Higher cable pre-tension than standard KEELINE systems reduces line sag and cable deflection
- Conforms to appropriate OSHA/ANSI standards
- Independently tested to the requirements of CSA 13-04 & 16-04, EN795 Class C
- Permanently attached, Gr.316 stainless steel, smooth running two wheeled traveller easily passes intermediate brackets
- In-line shock absorber limits end loads to structure
- End and intermediate brackets are installed directly to suitable structures, including steel or concrete
- Durable electro-polished Gr.316 stainless steel brackets and traveller
