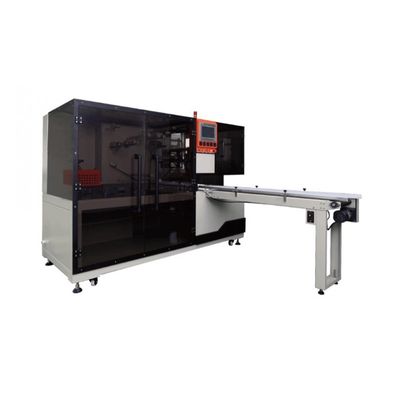

KEGEL - Model BTB-400 -Cellophane Overwrapping Machine
The BTB-400 Cellophane Overwrapping Machine by Kegel Machines is designed for efficient packaging of various large box articles and multi-piece blister packs. It is ideal for industries dealing with medicine, health products, foodstuff, cosmetics, stationery, and audiovisual products. Featuring PLC programmed control technology, the machine boasts an automatic box feeding and counting system complete with a touch screen display. The operation relies on a series of cams driving floating links and parts, streamlining the packaging process. Users have the option to wrap foil either around the product bypassing the sides or wrapping with folded sides, adapting to specific packaging needs. The machine supports BOP thermal film with belt-strap for efficient opening and closing. It operates at a power of 5.5 kW and can package between 20 and 40 pieces per minute. Made of stainless steel and incorporating components from Siemens, the BTB-400 ensures reliable performance and ease of maintenance.
Application:
This machine is widely applicable to the packaging of various single large box articles, such as the medicine, health products, foodstuff, daily cosmetics, stationery articles, and audiovisual products, or the collective blister pack of multi-piece box articles (with gold tear tape).
PLC programmed control technology, automatic box feeding and automatic counting and touch screen display, pneumatic film falling.
The work can be finished by a series of cams in the machine driving various floating links and parts.
Function:
You can use a film with a ribbon for easy opening.
The machine has an automatic product feeding and counting system.
Simple service system, reliable work, comfortable maintenance.
The main components (including touch screen) produced by Siemens.
The device is made of stainless steel.
The form prepared under the dimensions of the customer's product in extra price.
The device is available in two options:
1. the foil is wrapped around the product, bypassing the sides
2. the foil is wrapped around the product, folded on the sides on the sides
For an extra charge, the device can be adapted to both options.
Technical parameters:
Power: 5.5 kW
Power supply: 230 V / 50 Hz US 110 V
Film type: BOP thermal film, belt-strap for easy opening
Efficiency: 20-40 pcs./min.
The diameter of the roll with foil: up to 270 mm US up to 11"
Inner diameter the core of the roll: 76 mm US 3"
Film thickness: 22 microns
Dimensions of packaging [L x W x H]: 300 x 200 x 100 mm US 12 x 8 x 4"ns
Machine dimensions: [L x W x H]: 2250 x 880 x 1650 mm US 94 x 47 x 71"
Weight: 800 kg US 1764 lb
