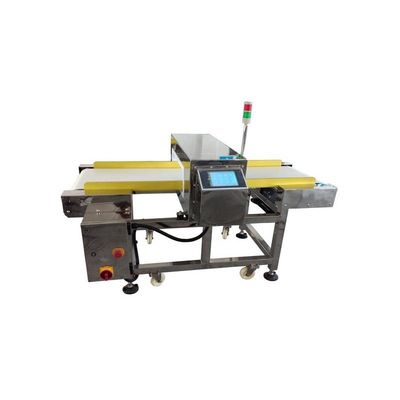

KEGEL - Model MDC D - Metal Detector for Food and Pharma Packaging

The MDC D Metal Detector is a professional equipment designed specifically for detecting metal contaminants in products packaged in materials such as paper, foil, and cardboard. This machine is primarily utilized in the pharmaceutical and food processing industries to ensure the integrity and safety of consumer goods. It operates with a fast 32-bit CPU control circuit and is equipped with a user-friendly LCD touch screen interface. The device features a multifunctional operating system incorporating DSP technology and a digital signal filter, capable of storing up to 100 products in its memory. Upon detecting metal, an alarm system with sound and light alerts is activated. Constructed from stainless steel, the detector is powered by a 120 W supply and operates at 230 V / 50 Hz. It has a tunnel size of 500x200 mm, working width of 430 mm, and a working height of 170 mm. The conveyor speed ranges between 18 to 36 m/min, and the unit's weight is 190 kg. Designed for ease of operation, the height of the conveyor is adjustable, facilitating integration into various production lines.
