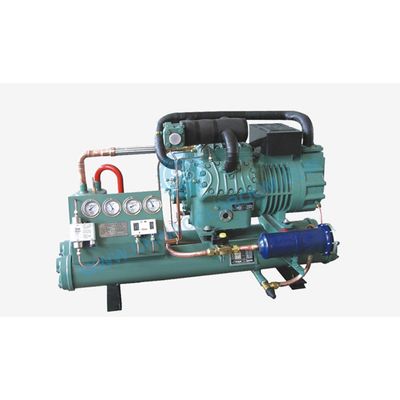

Kendall - Model GEA BOCK -Low Temperature Water Cooled Condensing Unit

Designed to meet the latest cooling requirements, this GEA BOCK Low-Temperature Water Cooled Condensing Unit has a semi-hermetic piston compressor for high efficiency and stable operation. And the air-cooled unit of our condensing unit has an outside rotor condenser which maintains good appearance and less noise. The water-cooled condenser (aluminum fin and copper tube) and premium quality air-cooled condenser (shell-type) ensures long life and over-heat protection. Moreover, waterproof junctions of the GEA BOCK Low-Temperature Water Cooled Condensing Unit are quite easy to connect with all control components to save time.

We always provide series of products for the solution of cold storage, water-chilling and ice-making with the best quality to maintain OEM-QUALITY standards.

• Power supply :380V/3P/50HZ
• Storage temperature: -35～-25 ℃
• Refrigerant: R22
• Air cooling condenser made up of aluminum fin and copper tube
• Water cooling condenser
• Semi hermetic compressor
• High efficiency
• Easy to connect water proof junctions
• Low noise
• Less power consumption
• Stable operation
• Evaporation temperature -35℃,
• Water cooling inlet temperature 30℃
• Water cooling outlet temperature 35℃
• Inhale overheat 10℃

• Water cooling condenser
• Compressor
• Damping pipe
• Crankcase heater
• Junction box
• Filter
• Pressure controller
• Pressure gauge

• We are currently offering the following customizations;
• Single compressor unit
• Two parallel compressor unit
• Three parallel compressor unit

This water-cooled GEA BOCK Low Temperature Water Cooled Condensing Unit with all the parts and measurements is compatible with R22 refrigerant. Please contact us if you need a condensing units for other refrigerants.
