KERNEL Sistemi s.r.l

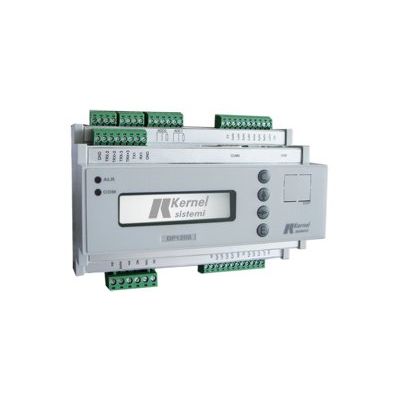

KERNEL - Model DP 120 -Kernel Bar Connecting PLC System with White/Black Graphic
The DP 120 is the first Kernel bar connecting PLC with white/black graphic. Small and compact it is indicated for the management of any type of automation, also available with analog inputs for PT100 temperature sensor, J or K thermocouple, voltage or current. The DP 120 is completed from 4 configurable serial ports and an optional Ethernet port.
Most popular related searches
- Digital Inputs : 8 digital inputs PNP 24 Volts including 4 fast (until 20 KHz for encoder reading) with programmable anti-noise filter (value 1 … 16)
- Analog Inputs : 2 analog inputs with 12 bits resolution [0 … 4095] ; for PT100, PT1000, thermocouple (J or K) otherwise voltage (0 … 10 V) or current (0 … 20 mA)
- Digital Outputs : 8 static outputs 24 Vdc 500 mA
- Analog Outputs : 2 analog outputs 0 … 10 V with 12 bit resolution [0 … 4095]
