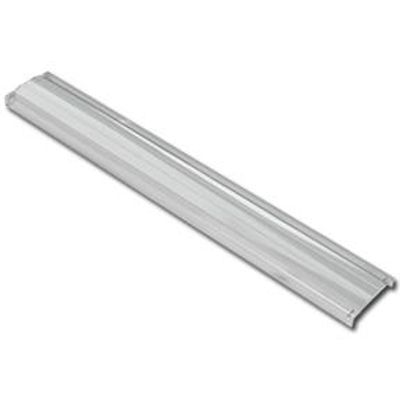

Khatod - Model PLL2091UW -Lenses for Mid Power LEDs

"SUPERLINEA Lenses for Mid Power LEDs"

Material: Clear PMMA, Non-yellowing, 10-year guarantee**
Full angle C0-C180 at 50% from maximum: ~ 84x100°
The light spots here represented refer to tests carried out with 22 ½ Watt LEDs, 5.6x3mm size, ~1100lm@Strip

Linea Lenses offer exclusive installation also in continuous rows made of limitless number of parts by simple fastening. Ideal for use in narrow width luminaire designs, in architectural and decorative applications.

**PLL2091 series is made of the same material used to produce PLEXIGLAS® Solar which guarantees it will show no yellowing for 10 years. Yellowness Index (YI) according to the test standards for Arizona/Florida outdoor exposure testing:

• YI 6 under hot/dry conditions
• YI 8 under hot/wet conditions
