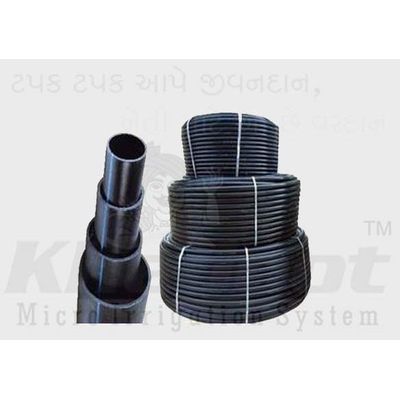

Khedut - Model HDPE -Pipes
“Khedut” HDPE pipes are suitable for underground & overgrown installations and are available in 20mm to 110mm sizes. “Khedut” HDPE pipes are also available in coils of 50, 100, 150, & up to 300 Mt. in length. The pipes to be used in the system are made up from 100% vergin High Density PolyEthylene Granuals. It also compare or passes the IS standard mark as per IS 4984-95. This pipe is light in weight, flexible & highly durable.
The major and end use of “Khedut” HDPE pipes are
- Telephone / Cable ducting
- Drip & Sprinkler Irrigation
- Potable water supply under water piping.
- Fuel gas distribution.
- Irrigation (Flow, lift, gravity flow)
- Sewage & Sanitation piping.
“Khedut” HDPE pipes have various advantages over the conventional pipe system. These are
- Outstanding resistance to conventional chemical & environments.
- Light in weight.
- Long length up to 500 Mt. (depending upon the size)
- Exception durability and long life.
- Excellent flow characteristics.
- Absolutely light & lick proof.
- Earthquake Resistance
Classification of Pipe
This pipes are classified by pressure rating (working pressure) at 27’C in IS 4984-95
Class of Pipe: Working Pressure
- Class I: 0.25 MPA (2.5 Kgf/cm2)
- Class II: 0.4 MPA (4 Kgf/cm2)
- Class III: 0.6 MPA (6 Kgf/cm2)
- Class IV: 1.0 MPA (10 Kgf/cm2)
Dimention for “Khedut” HDPE Pipe
Dimension of “Khedut” HDPE pipes with PE-63 grade of material are listed below: As per IS-4984-95
Our HDPE pipes are resistant toA) Mineral Acid Like
- Hydrochloric acid (50%)
- Sulfuric acid (50%)
- Sulfuric acid (30%) etc
B) Alkalis like
- Ammonium Hydroxide
- Calcium Hydroxide
- Sodium Hydroxide etc
C) Salts like
- Calcium Chloride
- Potassium Chloride
- Sodium Bicarbonate
- Sodium Chloride etc.
D) Oxidizing Agents like
- Sodium Hypochloride
- Chlorine water
- Calcium Hypocholoride etc.
E) Organic acids like
- Acetic Acid
- Steric Acid
- Hydroxyl Acetic Acid etc.
F) Oils and Derived Products like
- Crude oil sour
- Diesel fuel
- Gasoline etc.
G) Solvents like
- Acetone
- Methyl Ethyl Ketone
- Tolurre etc.,
H) Gas like
- Ammonia
- Carbon Dioxide etc
I) Earth quack Resistance
