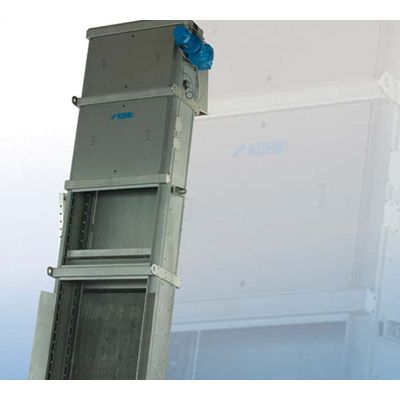

The KHU Multi-Rake Screen KHU-Boomerang XL is the latest generation KHU multi-rake screen, improving on the standard configuration and designed to suit a large range of applications. The focus of the new development was to achieve maximum flow rate with minimal head loss, while ensuring optimum and steady removal of captured screenings. The new KHU-B XL multi-rake bar screen pushes screening to the limit and beyond!

Most popular related searches

multi-rake screen

multi-rake bar screen

raked bar screen

self-cleaning screen

wastewater flow

well maintenance

Suitable for very large hydraulic heads and channel widths
Designed for the largest possible wastewater capacities
Optimized flow with approximately 30% higher throughput
Total removal of screenings from the channel bottom, thanks to the Boomerang design
Not affected by stones or gravel
Simple machine care
Space-saving installation thanks to an almost upright position of 80°
Open system frame prevents side frame losses
Very low blockage thanks to selected forced engagement of the rake combs into the screen grate
Utilizes wedge wire bar profile to reduce blockage of the screen grate
Highest cleaning speed available, expandable through additional clearing bars
Drive chain in hardened high-grade steel (no steel or plastic tracks)
Easily interchangeable segmented rake comb boards in hardened materials
Solid system frames with well thought out maintenance openings
No fastening required on the channel floor
Fully automated cleaning operation (no brushes or spray wash systems)
Temporary running in reverse for self-cleaning of the screen grate possible
Available in separable construction for difficult installation conditions
Electromagnetic overload protection
Optional inspection glass
Optional: two different broaching speeds
