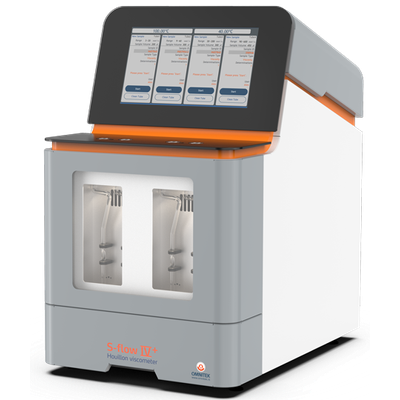

Omnitek - Model S-flow IV -Kinematic Viscometer
FromOmnitek BV
Houillon viscosity reinvented with an optional autosample. The newest generation of S-flow systems offers the ultimate in fast, accurate viscosity testing and now also features an optional autosampler for fully unattended operation.
Most popular related searches
ASTM D445
used oil analysis
viscosity test
viscosity testing
viscosity meter
optical sensor
digital temperature controller
viscometer tube
oil analysis
autosampling
- Number of baths: 2
- Viscometers per bath: 2
- Standard methods: Compliant with ASTM D7279, D2270
- Correlation with ASTM D445
- Built-in VI calculation: Yes
- Measuring range: 0.3 - 3,000 mm2/s @40°C
- Temperature range : 20 – 120°C *
- Temperature stability: Better than ±0.02°C
- Timer resolution: 0.001 s
- Sample volume: 0.3 – 1.0 ml
- Solvent consumption: 2 – 3 ml per cycle
- Samples per hour : Up to 80 samples per hour **
- Viscometer type: Houillon
- Sensor type: Optical, self-calibrating
- Time measurement: Automatic
- Solvent injection: Automatic
- Advanced PC software option: Yes
- Dual solvent option: Yes
- Duplo measurement option: Yes
- External cooling system option: Yes
- Air compressor: Yes
- Silicone oil option: Yes
- Integrated cleaning pump: Yes
- Warmup prior to measuring: Yes
- Touchscreen: 12” capacitive
- Optional autosampler: Yes
- Dimensions: 40 x 58 x 66 cm (w x d x h)
- Weight: 52 kg
- Data export: USB storage device
- Power requirement 950 W; 115/240V - 50/60Hz
- Applicable for fuels, base oils, formulated oils, and petroleum products as well as water-based fluids
- Compliant with requirements for ASTM D7279, ASTM 2270 and correlation to ASTM D445
- High throughput: up to 80 samples per hour under ideal operation conditions
- Very easy to use and maintain
- Small sample volume: 0.3 – 1.0 ml
- Low solvent consumption: 2 – 3 ml per sample.
- Extremely accurate temperature control and flow-time measurement independent of fluid type
- Automatic calibration of the optic amplifiers
- Automatic flow time measurement with ultraprecise meniscus detection
- Fully automatic cleaning and drying
- Fast & easy tube replacement (tubes are not connected to optical sensors)
- No need to drain bath during tube replacement.
- Single or dual solvent injection (optional)
- Measurement at 2 temperatures in 1 system simultaneously
- Integrated VI calculations
- Stand-alone unit. No PC required.
- Chemically resistant to allow for all common solvents
- Bath scheduler to turn baths on/off on preset times
- Bath temperature graphs on screen
- Bath backlight. It improves visibility of viscometer tubes and sensors
- User Access Control
- Duplo measurement capability
- Integrated back flushing
- Optional autosampler
This product is compliant with the following test methods:
- ASTM D7279
- ASTM D2270
This product is correlating with the following test method:
- ASTM D445
