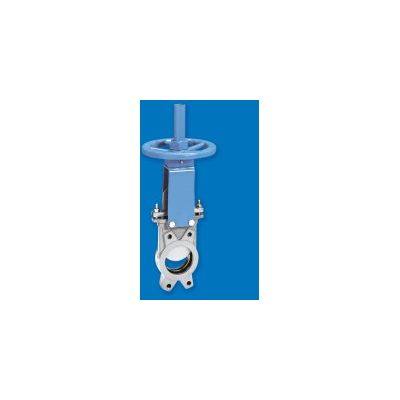

Bidapro - Model GM -Knife Gate Valve

Mainly used in industries such as:

• pulp and Paper

• pastewater treatment plants

• power plants

Sizes:

• DN 50 through DN 1200 (larger diameter upon request)

Pressures:

• DN 50 to DN 250: 16 Kg/cm²
• DN 300 to DN 400: 6 Kg/cm²
• DN 450: 5 Kg/cm²
• DN 500 to DN 600: 4 Kg/cm²
• DN 700 to DN 1200: 2 Kg/cm²

Standard flange connection:

• EN1092 PN10 and ANSI B16.5 (class 150)
