Komax - Model M1630 Jet -Wire Marking Systems
The M1630 Jet inkjet printer enables fast, flexible line printing with short changeover times. Operation takes place directly via the machine control. The strengths of the M1630 Jet inkjet marker are low manufacturing costs, efficiency at high volumes and frequent change of print content. It comes in BC (black marking), P (pigmented inks) and S versions (for small fonts in black). The marker is virtually maintenance-free during operation. Ink and make-up fluid can also be replenished during production. The RFID reader checks the modules and warns of errors. The wire marking system is controlled by a color touch panel and also enables the operation of several network-integrated markers. Komax printers are closely linked to the machine control: Print data is collected and stored on the machine. The Komax 1630 Jet is automatically configured when the system is started.

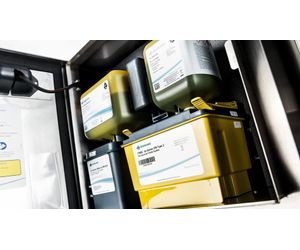

Cartridges for ink, make-up fluid and i-Tech filter module
The M1630 Jet is easy to operate and maintain. Ink and make-up fluid can be added during operation. The RFID reader checks the inserted cartridges and warns of errors.
M1630 Jet
Metric
- Wire outer diameter min.: 1.0 mm
- Character height min.: 0.8 mm
- Character height max.: 4.6 mm
- Ink cartridge contents: 825 ml
- Make-up cartridge contents: 1200 ml
- Print speed 5x5, H 2mm, H/W =1 max.: 6.6 m/s
- Print speed 5x5, H 2mm, H/W =1.4 max.: 9.2 m/s
- Printer type: Continuous inkjet
- Print head shape: Round
- Grid (character matrix): 5×5, 5×5 (Kamin), 7×5, 7×5 (Kamin), 11×7
- Position accuracy: Typically ±1 - 2 mm + 0.1 - 0.2 % of wire length
- Interfaces: Ethernet (TCP/IP)
- Connection options: All Kappa 3xx
- Electrical connection: 1 x 110–240 V, 50/60 Hz, 40 W in idle mode, 80 W in operation
- Weight: 22 kg
- Housing material, protection class: Stainless steel, IP55 (splash-proof), electronics IP 66
- Dimensions/printer with 7" touch panel: 430 mm
- Dimensions/depth: 430 mm
- Dimensions/width: 381 mm
- Dimensions/height: 411 mm
- Control panel: Color touch panel, optionally 7“ or 10.4”; can be used for several printers
- Head hose length: 3000 mm
- Signaling: Signal light with 4 colors and buzzer
- Make-up recovery: Standard feature
- Sliding table: for marking individual goods
- Humidity, non-condensing: 90 %
- Temperature operation: 5-45 °C
Imperial
- Wire outer diameter min.: 0.039 in
- Character height min.: 0.031 in
- Character height max.: 0.18 in
- Ink cartridge contents: 27.9 oz
- Make-up cartridge contents: 40.6 oz
- Print speed 5x5, H 2mm, H/W =1 max.: 21.6 ft/s
- Print speed 5x5, H 2mm, H/W =1.4 max.: 30.2 ft/s
- Printer type: Continuous inkjet
- Print head shape: Round
- Grid (character matrix): 5×5, 5×5 (Kamin), 7×5, 7×5 (Kamin), 11×7
- Position accuracy: Typically ±1 - 2 mm + 0.1 - 0.2 % of wire length
- Interfaces: Ethernet (TCP/IP)
- Connection options: All Kappa 3xx
- Electrical connection: 1 x 110–240 V, 50/60 Hz, 40 W in idle mode, 80 W in operation
- Weight: 48.5 lb
- Housing material, protection class: Stainless steel, IP55 (splash-proof), electronics IP 66
- Dimensions/printer with 7" touch panel: 16.9 in
- Dimensions/depth: 16.9 in
- Dimensions/width: 15 in
- Dimensions/height: 16.2 in
- Control panel: Color touch panel, optionally 7“ or 10.4”; can be used for several printers
- Head hose length: 118 in
- Signaling: Signal light with 4 colors and buzzer
- Make-up recovery: Standard feature
- Sliding table: for marking individual goods
- Humidity, non-condensing: 90 %
- Temperature operation: 41 - 113 °F
