Komptech - Model Hurrikan -Windsifter Separator

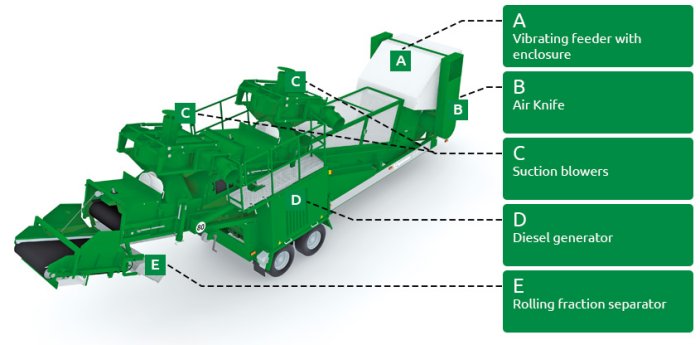

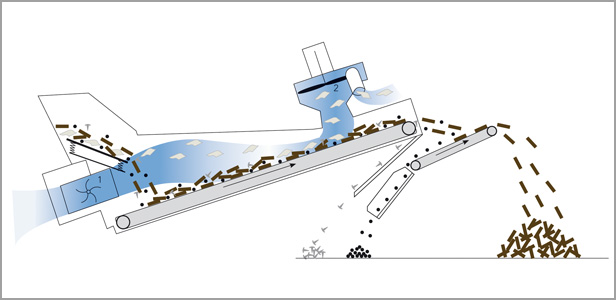

The mobile Hurrikan windsifters allow effective separation of plastic foils from over-sized screened particles. The patented “pressure-suction“ process enables an effective separation of light fraction from screening residues. In the first step, material is separated by an air knife. In the second step, the lightweight material is drawn off by a powerful suction blower. The suction performance is adjustable to material by variation of blower speed, blower distance and vent flaps. The quality of the recyclable oversized particles can be improved yet further by using magnet separation and a stone trap.
- High throughput with over 95% selectivity, by precise adjustment of settings to match material properties
- Powerful S-version with enlarged suction section (Two suction blowers)
- Maximum mobility and independent operation with on-board diesel power unit
- Compatible with most commercially available mobile screening units
DRIVE
Electrical power input (kW/HP): 44 / 59
Diesel generator (kVA/HP): 60 / 80.4
MATERIAL FEEDING
Filling width: 5’3’’ / 1600 mm
Filling height: adjustable from 6’5’’ to 7’5’’ / 1950 to 2250 mm
BLOWER POWER
Pressure blower (kW): 7.5
Suction- and feed blower (kW): 15
MATERIAL DISCHARGE
Max. discharge height: 9’6’’ / 2900 mm

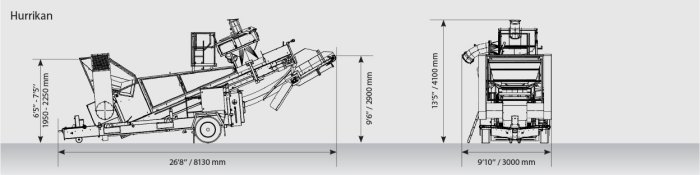

DIMENSIONS L x W x H: Transport dimensions: 27’3’’ x 8’4’’ x 13’1’’ / 8300 x 2550 x 4000 mm
Working dimensions: 26’8’’ x 9’10’’ x 13’5’’ / 8130 x 3000 x 4100 mm
Weight (dependent on equipment): 7.0 t.sh / 6.5 mt
THROUGHPUT (dependent on material)
Throughput performance: to 75 yd3/h / to 57 m3/h
OPTIONS
CMagnet drum, separation belt for rolling fraction, diesel generator, frequency controller for suction blower, intake channels, vibrating feeder enclosure etc.
HURRIKAN S
DRIVE
Electrical power input (kW/HP): 44 / 59
Diesel generator (kVA/HP): 60 / 80.4
MATERIAL FEEDING
Filling width: 5’3’’ / 1600 mm
Filling height: adjustable from 6’5’’ to 7’5’’ / 1950 to 2250 mm
BLOWER POWER
Pressure blower (kW): 7.5
Suction- and feed blower (kW): 15
MATERIAL DISCHARGE
Max. discharge height: 9’6’’ / 2900 mm
DIMENSIONS L x W x H: Transport dimensions: 27’3’’ x 8’4’’ x 13’1’’ / 8300 x 2550 x 4000 mm
Working dimensions: 26’8’’ x 9’10’’ x 13’5’’ / 8130 x 3000 x 4100 mm
Weight (dependent on equipment): 7.0 t.sh / 6.5 mt
THROUGHPUT (dependent on material)
Throughput performance: to 75 yd3/h / to 57 m3/h
OPTIONS
CMagnet drum, separation belt for rolling fraction, diesel generator, frequency controller for suction blower, intake channels, vibrating feeder enclosure etc.
