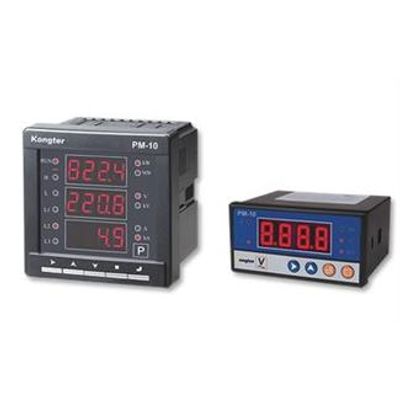

Kongter - Model PM-10 -Digital Panel Power Meter
PM-10 digital panel meter is an intelligent instrument that has integrated with modular design of digital display, analog output, RS485, over limit alarm record and relay output. The instrument fulfills GB/T13978-2008, GB/T 13850-1998 standard, GB/T 17626.5-2008, IEC1010 and EN61010 standard.
Most popular related searches
- Ultra BRIGHT RED LED display
- Modular design
- Analog Output (optional)
- RS-485 communication port (optional)
- Relay output (optional)
- Panel mounting
- Connection: 3P3W, 3P4W
- Input Voltage: 57.7~600VAC
- Input Current: 0~5A
- PT Scope: 0.1~6500
- CT Scope: 0.1~6500
- Display range: 0-9999MW
- Operation temperature: -10℃~55℃
- Operation Humidity: ≤ 95% (non-condensing)
- Storage temperature: -40℃~85℃;
- Storage humidity: ≤ 95%
- Dimensional Size: EX53: 96*96*76mm
- Installation: Panel mounting.
- PM-10-53 Installation size: 91*91mm
