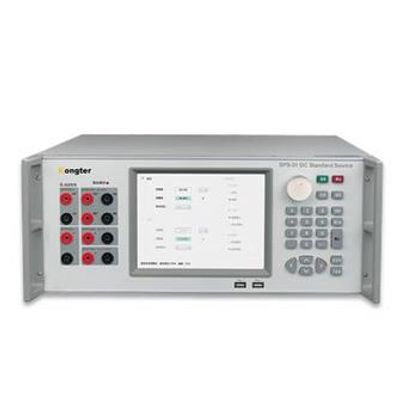

Kongter - Model SPS-31 -DC Standard Source Meter
SPS-31 is specially designed to test analog and digital DC/AC Voltage meter, Current meter energy meter, DC voltage transducer and Current transducer. It is widely applied for test, production and inspection in research institution, national measurement institution at all levels, and meter manufacturer.
Most popular related searches
current meter
static electricity
inspection system
calibration standard
locating system
calibration source
metering system
- Signal: DC
- Accuracy: Class 0.05
- DC voltage output: 0-1100V
- DC current output: 0-30A
- Modular design, strong anti-interference ability, it is used for interference test of static electricity, EMC and so on.
- 8 inch color touch screen, interface friendly, easy to operate
- Equipped with RS232, Ethernet, and WiFi interface, SPS-31 can either support stand-alone operation, PC control or handy wireless terminal control
- Self-protection, alarm and display overload location for equipment output overload, Voltage short-circuit, Current open-circuit
- Communicate with tested meter thru RS-232/485
- Customize Auto-calibration and inspection system of meters
- Automatically detect, diagnose and alarm the failure
- Remotely updating online, easily achieve software update
- Support local calibration by users
DC Voltage output
- Range (4 wires): 100mV, 300 mV, 1V, 5 V, 20V
- Range (2 wires): 100V, 300V, 1000V
- Adjustment Range: (0~120) %RG; 1000V: (0~110) %RG
- Adjust resolution: 0.01%RG, 0.1%RG, 1%RG, and 10% RG for option
- Stability: 0.005%/2min
- Ripple amplitude: ≤1%
- Output load: 30V and upper gears: ≥10mA; 7.5V and below gears: ≥25mA
- Measurement accuracy: 0.05%RG
DC Current Output
- Range: 1mA, 3mA, 10mA, 30mA, 100mA, 300mA, 1A, 5A, 10A, 15A, 25A
- Adjustment Range: (0~120) %RG
- Adjust resolution: 0.01%RG, 0.1%RG, 1%RG, 10% RG
- Stability: 0.005%/1min
- Ripple resolution: ≤1%RG
- Output load: 25A: 25VA, other ranges: ≥2V; 200mA and below ranges: ≥15V
- Measurement accuracy: 0.05%RG
DC energy
- DC energy basic error limit: 0.05%RD
DC Voltage measurement
- Range: 75mV, 100 mV, 300mV, 1V, 3V, 10V, 30V, 100V, 300V, 100V, automatically switch ranges
- Stability: 0.005%/1min (Class 0.05), 0.01%/1min (Class 0.1)
- Basic error limit: 0.02%RG
- Ripple measuring error: ±(5%RD + 0.1%), RD refer to ripple measured value
- Resolution: 0.001%RG
DC Current measurement
- Range: 2mA, 20mA, 200mA; 1A, 5A, 10A, 30A, automatically switch ranges
- Stability: ≤100ppm/year
- Basic error limit: 0.02%RG (2mA~1A), others: 0.1%RG
- Ripple measuring error: ±(5%RD + 0.1%), RD refer to ripple measured value
- Resolution: 0.001%RG
- Power supply:90-265VAC/DC
- Power frequency:50Hz~60Hz
- Power consumption:50VA
- Environment condition: 20℃~30℃, Humidity: RH≤85%
- Storage environment: -20℃~50℃
- Size:600mm（L）× 440mm（W）× 176mm（H）
- Weight:15kg
